Ttc / Acterna T-berd 224 Pcm Analyzer W/12041/14875/41243/41249/42659/43016+

US $1,906.88

Phoenix, Arizona, United States
Jan 29th

Open on mobile:
QR code

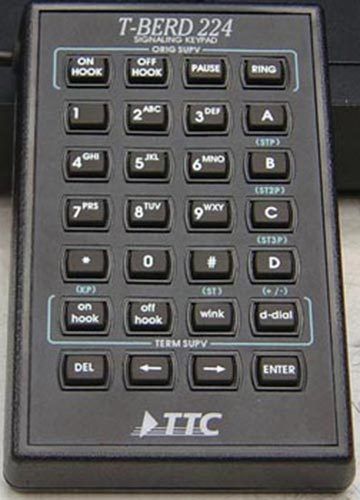

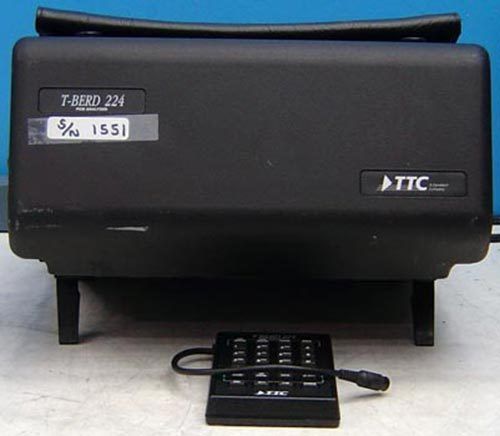

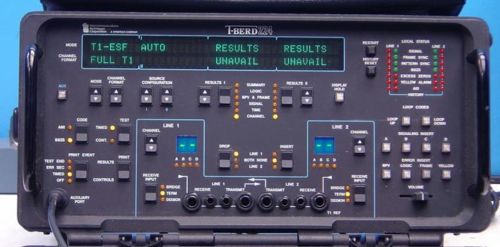

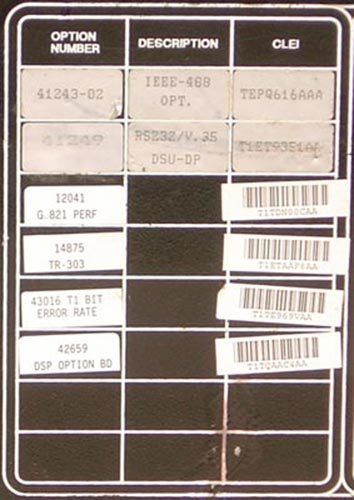

Click Here. Double your traffic. Get Vendio Gallery - Now FREE! TTC T-BERD 224 PCM Analyzer with Options: 12041, 14875, 41243-02, 41249, 42659, 43016 and a Keypad Comes with a manual and what you see in the pictures. If you don't see it, you probably wont get it. Specifications are from TTC and may vary slightly due to upgrades, options, or revisions this unit may or may not have. This unit is guaranteed to work for 30-days, parts and labor, excluding freight. Total List price: $10170.00 Information from the Unit: Serial Number: 1551 SW Version: L.01 (c) TTC 2/12/98 Signaling Keypad Information: Serial Number: 9346 Options: Option 12041: G.821 PERF - G.821 Performance Option - Lists for $195.00 Option 14875: TR-303 Option 41243-02: IEEE-488 Option - Lists for $495.00 Option 41249: RS232/V.35 DSU Data Port - Lists for $1395.00 Option 42659: DSP Option BD - DSP Outption Board $995.00 Option 43016: T1 Bit Error Rate - List Price is $595.00 Link to the Datasheet: Acterna/TTC T-Berd 224 PCM Analyzer Datasheet General Description: The T-BERD 224 mainframe's straightforward functionality offers flexibility and power that is unmatched in any channel access test set. Use the T-BERD 224 to monitor the status of in-service circuits, to troubleshoot out-of-service circuits with a complete set of stress patterns, and to isolate faulty equipment or circuit impairments. The T-BERD 224's field-upgradeable software options enable you to build a custom set for every testing need. The T1 BERT Option enables you to stress test the entire T! circuit. Test the error tolerance of network equipment by inserting single, burst, variable-rate BPVs, frame errors, and logic errors. Highlights: Automatic configuration and results summary functions immediately identify framing, pattern, and error status. All controls and indicators are on the front panel to save time in training, test setup, and operation Loop smart jacks and CSUs with in-band and out-of-band loop codes to verify T1 circuits with a single test set Detect differences in system timing between two T1 inputs. Immediately identify and isolate network synchronization problems Sectionalize the T1 link with non-intrusive, bidirectional monitoring. Count bipolar violations (BPVs), frame errors, and cyclic redundancy checks (CRCs). Measure the receive signal levels (volts, dBdsx) and frequencies for both T1 inputs Verify extended superframe (ESF) to D4 conversions, and monitor with split framing on the T1 inputs Monitor on hook/off hook conditions and drop selected DS0s to audio output or perform further testing with other T-BERD 224 option packages Test the full T1 span with a wide range of test patterns Drop (receive) and insert (transmit) on any of the 24 channels from any T1 access point, while maintaining service on the remaining 23 channels T1 BERT Option (not sure if this is part of the 41500 Option): The Channel Access Tester mainframe with the T1 BERT Option enables the user to troubleshoot the entire T1 circuit and test the error tolerance of network equipment by inserting single burst, variable-rate bipolar violations (BPVs), frame errors, and logic errors. Through automatic configuration and results summary functions, framing, pattern, and error status are immediately identified. The two transmitters and receivers provide several different test modes that include Terminate, Drop and Insert, and Dual Receiver Monitoring. While in Dual Receiver Monitoring mode, the user can none intrusively sectionalize the T1 link; count BPVs, frame errors, and cyclic redundancy checks (CRCs); and measure the receive signal levels (volts, dBdsx) and frequencies for both T1 inputs. In addition, the test set can be used to terminate the circuit and perform turn-up and out-of-service troubleshooting using Terminate mode. And by placing the Channel Access Tester in Drop and Insert mode, the user can test a particular channel out of T1 without affecting the rest of the traffic. FT1 Option (not sure if this is part of the 41500 Option): The FT1 Option allows users to turn-up and troubleshoot contiguous and noncontiguous Nx56 and Nx64 FT1 circuits. When the Channel Access Tester is placed in Terminate mode, the user can completely qualify and test new FT1 circuits before connecting customer premises equipment (CPE). In addition, the test set has drop and insert capabilities and a full complement of T1 and DDS test patterns for troubleshooting FT1 circuits. And similar to the T1 BERT Option, the FT1 Option inserts single, burst, or variable-rate BPVs and logic errors across the fractional bandwidth. DDS Option (not sure if this is part of the 41500 Option): The DDS Option provides the flexibility to monitor and test DDS circuits from a T1 access point using Dual-receiver Monitoring, Drop and Insert, and Terminate modes. By measuring the round-trip path delay of any channel in the T1, the user can verify that excessive circuit delays do not impact circuit performance. Moreover, this option offers testing of both DS0A and DS0B formatted DDS circuits at rates from 2.4 kbps to 64 kbps. When turning up and troubleshooting circuits, users can loop DDS circuits using alternating and latching OCU, DSU, and other loop codes, which allows them to test DDS circuit using various test patterns such as Bellcore standard DDS stress patterns (DDS-1 through DDS-6). By inserting single, burst, or variable-rate BPVs and frame and logic errors, the user can test the physical layer at various subrates. Specifications: Overall Dimensions: 6.5 x 14 x 11 in. Weight: 14 lbs. (6.4 kg) Power Requirements: 115/230 VAC ±10% Operating Modes: Automatic configuration to incoming D4, SLC-96, ESF, and ESFz (requires ZBTSI Option) framing. T1 Framed: D1D, D2, D3/D4, SLC-96, ESF, ESFz (requires ZBSTI option), ESF/D4 T1 Test Loopback T1 Line Loopback Test Patterns (Requires T1 BERT Option.) All Ones All Zeros Min/Max 2^23 -1 2^20 -1 2^15 -1 2^15 -1 INV QRSS 3 in 24 1:7 Auto Configuration Insert Sources (Mainframe only) 1004 Hz VF Interface DS0 Interface Input/Output Connectors Line 1: WECO 310 Bantam Line 2: WECO 310, Bantam Transmit Timing Sources Recovered Clock (line 1 or 2) Internal Clock External Clock (BNC Connector) Oscillator Accuracy 1.544MHz ±5ppm accuracy Frequency Measurement 1 Hz resolution; ±5ppm accuracy Signal Loss No Pulse Detected for 150 ms Excess Zeros 16 or more consecutive zeros are detected Frame Loss Sync D1D, D2: 2 frame errors out of 4 frame bits D3/D4, SLC-96: 2 frame errors out of 4 frame bits ESF, ESFz: 2 frame errors out of 4 frame bits Pattern Sync Loss 250 or more errors are detected in 1000 or fewer bits B8ZS Code is not detected for 150 ms Yellow Alarm D1D, D2, D3/D4, and SLC-96 declared when bit 2 set to "0" for 255 consecutive DS0 channels Alarm Indication Signal (AIS) 2048 consecutive confirmed ones T1 level Measurement ±6.0 dBdsx to -40.0 dBdsx: +6.0 to -6.0: 0.1 dB resolution -6.0 to -40.0: 0.5 dB resolution +23.0 dBm to -23.5 dBm: 0.1 dBm resolution +7.0 dBm to -13.5 dBm: 0.5 dBm resolution +12.0 to +0.05 V p-p: 0.01 V p-p resolution VF Interfaces 2-wire: Connectors: Metallic Posts (for butt set) 4-wire: Connectors: WECO 310 jacks Impedance: 600 ohms DS0 Interface: Bipolar Data Connectors: Bantam jacks Clock Output Connectors: 9-pin D female 64 kHz Bit and 8 kHz Byte Clocks: TTL and different outputs For Domestic Customers: Packaging, handling, and order processing included in shipping in all domestic shipments as quoted by the shipping calculator. For International Customers there is a $25.00 minimum for packaging, handling, and order processing. International shipping to be determined by destination. Prior to shipment I need to know the following information: (1) Are you the end-user of this item? (2) If you are not the ultimate end-user of the item, please state the ultimate end user's name. (3) What is the ultimate country destination? For all international customers, the following terms and conditions shall apply: These commodities, technology, or software are to be exported from the United States in accordance with Export Administration Regulations. Diversion contrary to U.S. law is prohibited. Domestic customers must also agree to the following terms and conditions: For items shipped within the United States, MHz Electronics, Inc's performance shall occur entirely within the United States. Unless expressly agreed to by MHz Electronics, this shall not be a routed party transaction. If you have any questions please call Michael at 1-866-MHZ-ELEC (1-866-649-3532) Toll Free. Also, please click here to view or other auctions! 11/20/04 Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“This unit is guaranteed to work for 30-days, parts and labor, excluding freight.”
