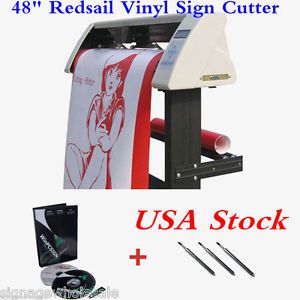

Overview 48" Vinyl Sign Cutter with Contour Cut Function Comprehensive guarantee for 2 years except the wearing parts Free shipping from California Shipping out within 24 hours (from Monday to Friday) Warm tips: we have USA warehouse, and fast shipping within 24hours, it can save much shipping fee and time for you . All of our products are high quality , perfect aftersales service. please buy with confidence! Any questions, plz send us message, we will do our best for you . Model CPM-RS-1360C Paper Feeding Mode Floor stand Driver Stepper motor Control Panel Over - head, LCD keyboard Maximum Paper Feed Width 1360mm (53") Maximum Cutting Width 1200mm (47") Maximum Cutting Speed 600mm (23") / s Maximum Cutting Length 2000mm (79") Maximum Cutting Thickness 0.1" (1.2mm) Knife Press 10-500g Minimum Size for Cutting Letters 3mm (0.1") Repetition Precision 0.01mm (0.0004") CPU RISC CPU Type of Tool Carbide blade Type of Plot Pen All types of plot pens with a 0.5"(12mm) diameter Plotting Instruction HPGL Interface USB2.0 RAM 4M Real cutter softball Yes Optical Function Yes Emergency stop Yes Power Supply AC90V-AC230V, 50Hz-60Hz With such a fast, accurate and versatile vinyl cutter plotter, you can contour cut most any media pre - printed - from your choice of inkjet, solvent based and laser printer.Red optic sensor, register marks with "Cut" Support, cut plug-in for Corel DRAW. WinPCSign plotting software (Match training CD) Support CorelDraw output directly (But you need to buy a soft dog), please choose CutMate2.3 CorelDraw driver with softdog This 48" vinyl cutting plotter has a contour cutting function and is used to cut all kinds of pictures, letters, and similar materials on self-adhesive vinyl, sticker. It is made in China and comes with two years warranty.Please choose contour cut function, WinPCSign 2009 Basic Plotting Software. • Low cost and high performance machine for the manufacture of signaling. • Controlled by RISC high-speed processor, a high speed cache. • This 48" vinyl cutting plotter can regulate the pressure and speed numerically at real-time. • This 48" vinyl cutting plotter supports CorelDraw files, bringing great convenience to work. • The cutting plotter is highly stable and has nearly no malfunctions. • This 48" vinyl cutting plotter has a stylish design and very solid support. • The cutting plotter has LCD with a very accurate and simple English Menu, operated it by pressing buttons. • The plotter’s pinch rollers are adjustable. • Unique soft impact cutter • This cutting plotter adopts the latest numerical technology, which creates a new concept of cutting. • This 48" vinyl cutting plotter has a perfect output: there's no saw tooth even when using high speed. • This 48" vinyl cutting plotter doesn't shake while cutting. • The paper stays in place when using rolls of media. • Save money for you. • Smooth cutting • It is very convenient and can be achieved fast. • The cutting plotter is easy to operate. 1.Protection of track 2.Carriage 3.Pinch roller 4.LCD monitor 5.Keyboard panel 6.LED lamp 7.Right shell 8.Machine’s foot 9.Knife holder 10.Seat of knife holder 11.Left shell 12.Handle to control the roller 13.AC power port 14.Safe fuse 15.Power switch 16.RS232 port Locknut holder's shell close screw blade On the working state, the knife can rotate in holder very smoothly. In the first time you can screw the "close screw" off the "holder's shell", set the blade into bottom of holder, then close the "close screw" to avoid the knife falling out, let the knife peep out of the holder less than 0.5mm. When you want to change the blade, take out the old blade, change a new one, then close the" close screw", keep the blade peep out of the holder less than 0.5mm. (The locknut will not screw, usually). Close screw Holder shell Plotting pen. You can use usual ball pen as plotting pen; keep the ball pen peep out of the holder between 4mm and 5mm. the other using method is similar as blade's process; please try it yourself according to the blade's changing method. Double spring press paper holder, not distortion Silica gel pinch roller, durable in use LCD display control panel CE mark and power supply USB interface 1.Details Show: 2.Function Show: The life of cutting knife Blade of vinyl cutter The correct usage could prolong the life of blade. (1)The more length the blade sharp extends out, the shorter life blade will work. So you should avoid cut through the paper. (2)The more Force, the blade life will get short. (3)Trying to use small Force, when the blade edge is getting less sharp, you could add the working force suitable. (4)Different brand blades will have different life. (5)You should change the blade when you find the old one has no tartness, to avoid affecting the work badly. How to fix and setup the cutting knife Blade of vinyl cutter? Turn off the plotter power. Set the holder on holder's seat; close the screw of seat of holder. Turn on the power, the carriage will move to right side; you can press "TEST" key to examine the plotter. Remark: A. You should keep the blade clean and don’t break the blade sharp. B. The length out of the cover should be just a little bit, say 0.2mm around over the paper thickness which you will cut! On the working state, the knife can rotate in holder very smoothly. In the first time you can screw the "close screw" off the "holder's shell", set the blade into bottom of holder, then close the "close screw" to avoid the knife falling out, let the knife peep out of the holder less than 0.5mm. When you want to change the blade, take out the old blade, change a new one, then close the" close screw", keep On Nov-11-16 at 02:24:48 PST, seller added the following information:
