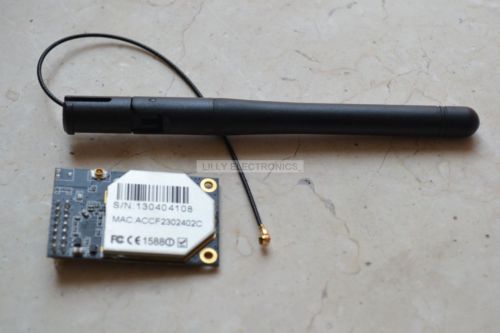

USR-WIFI232-B SERIAL TTL RS232 TO 802.11 B/G/N CONVERTER EMBEDDED WIFI MODULE, US $760 – Picture 0

USR-WIFI232-B SERIAL TTL RS232 TO 802.11 B/G/N CONVERTER EMBEDDED WIFI MODULE, US $760 – Picture 1

USR-WIFI232-B SERIAL TTL RS232 TO 802.11 B/G/N CONVERTER EMBEDDED WIFI MODULE, US $760 – Picture 2

USR-WIFI232-B SERIAL TTL RS232 TO 802.11 B/G/N CONVERTER EMBEDDED WIFI MODULE, US $760 – Picture 3

USR-WIFI232-B SERIAL TTL RS232 TO 802.11 B/G/N CONVERTER EMBEDDED WIFI MODULE, US $760 – Picture 4

USR-WIFI232-B SERIAL TTL RS232 TO 802.11 B/G/N CONVERTER EMBEDDED WIFI MODULE, US $760 – Picture 5

Usr-wifi232-b Serial Ttl Rs232 To 802.11 B/g/n Converter Embedded Wifi Module

US $760

Wuhan, China
Jan 29th

Open on mobile:
QR code

USR-WIFI232-B SERIAL TTL RS232 TO 802.11 B/G/N CONVERTER EMBEDDED WIFI MODULE Product Description Serial TTL RS232 to 802.11 b/g/n converter Embedded WiFi Module is a tool for MCU link to WIFI network, work for Transparent transmission, TCP server ,TCP client and UDP mode can be choose. You did not need to know wifi detail and make your MCU commulication with PC or notebook or Mobile via WIFI, or just connect two MCUs via wireless WIFI, very easy for use and cheap price.It can be config via AT command and WEB pages. High quality with FCC and CE certification, lots of in stock, bulk supply capacity for large quantity useage. Features Support IEEE802.11 b/g/n Wireless Standards Support TCP/IP/UDP Network Protocols Support UART/GPIO/Ethernet Data Interface Support Work As STA/AP/AP+STA mode Support Router/Bridge Mode Networking Support AT+ Instruction Set for Configuration Support Friendly Web Congiration Page Single +3.3V Power Supply Smallest Size: 25 x 40mm FCC/CE Certificated The Rx/Tx inputs support both 3.3v and 5v Download: Manual Parameters Class Item Parameters Wireless Parameters Certification FCC/CE Wireless standard 802.11 b/g/n Frequency range 2.412GHz-2.484GHz Transmit Power 802.11b: +20 dBm (Max.) 802.11g: +18 dBm (Max.) 802.11n: +15 dBm (Max.) Configurable Receiver Sensitivity 802.11b: -89 dBm 802.11g: -81dBm 802.11n: -71dBm Antenna Option External: I-PEX Connector Hardware Parameters Data Interface UART: 1200bps - 230400bps GPIOs Ethernet: 100Mpbs Operating Voltage 3.3V (+/-5%) Operating Current 170mA~300mA OperatingTemperature -10°C- 70°C Storage Temperature -40°C- 85°C Dimensions and Size 25x40x8mm Software Parameters Network Type Station /AP mode Security Mechanisms WEP/WAP-PSK/WAP2-PSK/WAPI Encryption WEP64/WEP128/TKIP/AES Work Mode Transparent Transmission Serial command AT+instruction set Network Protocol TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP Max. TCP Connection 32 User Configuration Web Server+AT command config. Package 1xUSR-WIFI232-B SERIAL TTL RS232 TO 802.11 B/G/N CONVERTER EMBEDDED WIFI MODULE Payment Method PayPal Preferred Shipping & Delivery We provide free shipping to international via China Post Airmail or Hong Kong Post Airmail, and every parcel will be registered with tracking number. We can also ship by UPS/EMS/DHL/FedEx for alternative shipping method for corresponding fees. International customers may experience delays by customs or national post providers. Review your duty-free limits. Please let us know before payment if you need split shipment. Time of Delivery The time to ship to international via China Post Airmail or Hong Kong Post Airmail quite depends on different destination of the world, it is also subject to change due to the local weather conditions, postal policy and custom checking. Based on the postal Air mail rules and our experience, kindly please be noted that To United States / United Kingdom / Australia, it takes around 10-15 business days; To Canada, it takes around 12-18 business days; To Brazil / South America, it takes around 25-35 business days. To Italy / France / Spain / Germany/ Eastern Europe, it takes around 15-20 business days. Returns & Replacements & Repair We accept returns & replacements within 14 days from the day the customer receive the products, please make first contact within 14 days from receiving the order. Products should be returned in original condition. As a benefit to our customers, we also provide repair within 3 months from the day when this item is shipped out, after repair is done,we will send you the item, but the customer should pay both shipping ways. Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Lilly Electronics
Country/Region of Manufacture	China
Model	USR-WIFI232-B
