Vexta Oriental Pk266-02b Nema23 Dual-shaft Stepper Stepping Motor - Cnc Diy Kit

US $45.00

Demopolis, Alabama, United States
Jan 29th

Open on mobile:
QR code

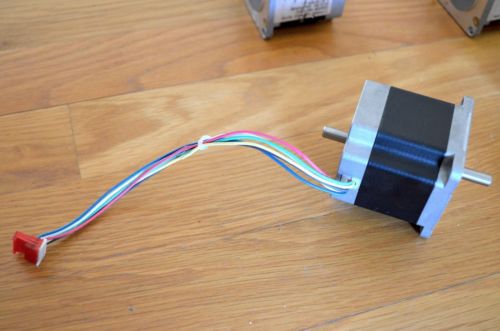

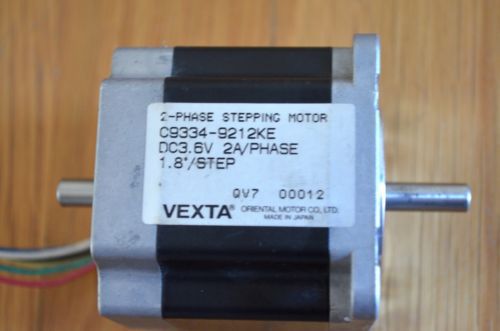

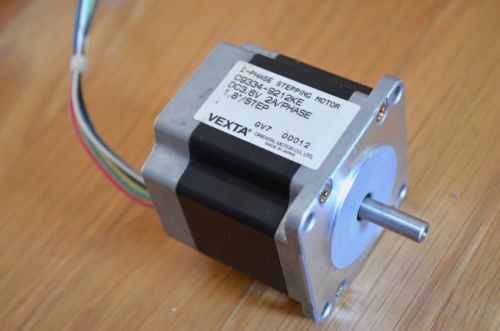

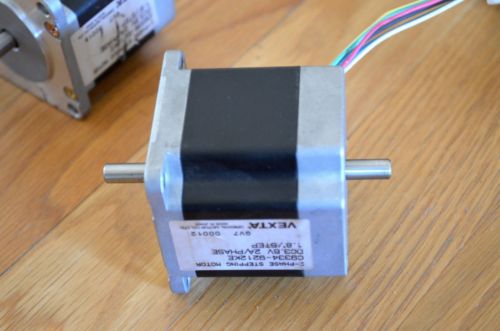

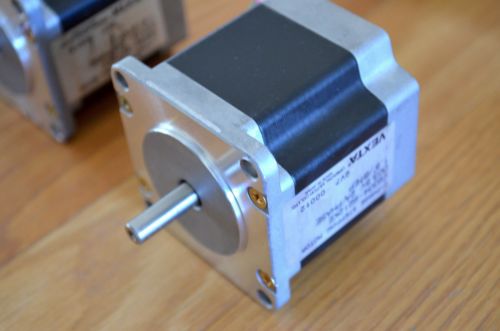

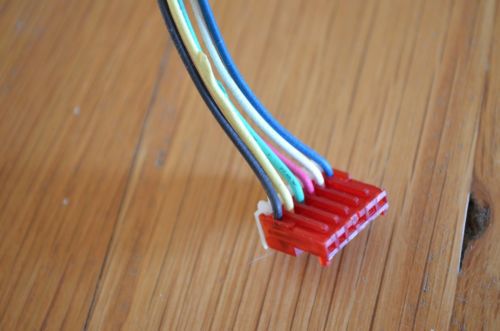

Vexta Oriental C9334-9212KE Nema23 Dual-Shaft Stepper Motor (Same spec's as Vexta PK266-02B) 1.8 deg/step , 2amp (Unipolar), 3.6v 1/4" diameter shafts (front & rear) **Auction price is for 1 motor, I have 8 available** This auction is for a lightly used Vexta Oriental stepper motor, in perfect working condition. The model number is C9334-9212KE, and it is a custom version of the Vexta PK266-02B. These motors originally had encoders attached and that is why they have a custom part number. It is a size nema23 dual-shaft stepping motor, 1.8 deg./step (200step/rev), 166oz-in Torque (Bipolar). It is an 6-wire motor, so it can be connected several different ways: Unipolar, Bipolar (Series), Bipolar (half-winding). The front and rear shaft are 1/4" dia. There are also two threaded mounting holes on the rear of the motor spaced at 1.8125" on center for attaching an encoder. C9334-9212KE Spec's: Specifications Product Line VEXTA ® Motor Type 2-Phase Motor Frame Size 2.22 in. sq. Shaft/Gear Type Round Shaft (No Gearhead) Holding Torque Bipolar (Series) 166 oz-in Unipolar 127 oz-in Type Standard Connection Type Bipolar (Series) Unipolar Lead Wires 6 Current per Phase (A/phase) 1.4 [Bipolar (Series)] 2 [Unipolar] Encoder None Shaft Double Voltage (VDC) 5 [Bipolar (Series)] 3.6 [Unipolar] Resistance (?/phase) 3.6 [Bipolar (Series)] 1.8 [Unipolar] Inductance (mH/phase) 10 [Bipolar (Series)] 2.5 [Unipolar] Step Angle 1.8 ° Rotor Inertia (oz-in2) 1.64 oz-in2 RoHS Compliant Yes Insulation Resistance 100 M ? or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity. Dielectric Strength Sufficient to withstand 1.0 kVAC at 50 Hz or 60 Hz applied between the windings and the case for 1 minute under normal ambient temperature and humidity. Temperature Rise Temperature rise of the windings is 176°F (80°C) or less measured by the change resistance method. (at rated current, at standstill, 2 phases energized) Insulation Class Class B [266°F (130°C)] Ambient Temperature Range 14 ~ 122°F (-10 ~ 50°C) (non-freezing) Ambient Humidity 85% or less (non-condensing) Shaft Runout 0.05 mm (0.002 in.) T.I.R. Concentricity 0.075 mm (0.003 in.) T.I.R. Perpendicularity 0.075 mm (0.003 in.) T.I.R. Radial Play 0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.) Axial Play 0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.) Step Accuracy ±3 arc minutes (±0.05°) S Shipping rate applies to US only (includes Alaska & Hawaii). International orders will be shipped via Ebay's 'Global Shipping Program' , please click on the 'Shipping and Payments' tab above and select your country from the drop-down menu to get a shipping quote from Ebay. If your country is not listed then please contact me for a shipping quote before placing a bid.

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“Auction price is for 1 motor, I have 8 available. Motors are used, but in perfect working condition!!”
