Vi Technology 3d Xpi 4000l 3d Solder Paste Inspection System 2009 Vintage Aoi

US $33,000.00

Orlando, Florida, United States
Jan 30th

Open on mobile:
QR code

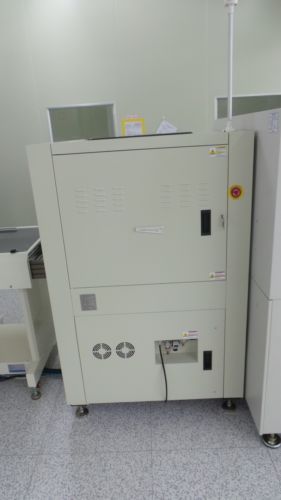

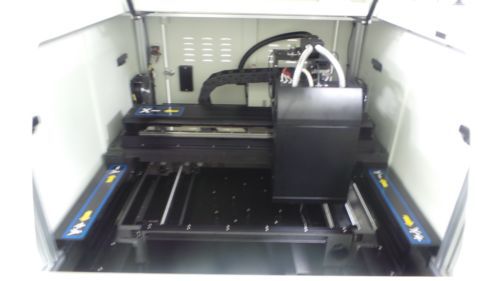

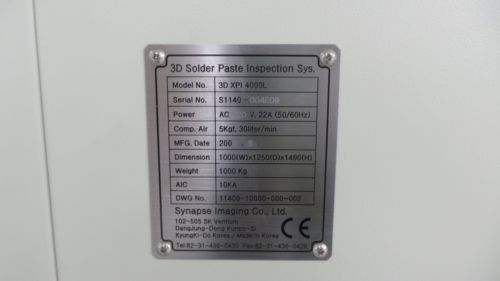

Vi Technology 3D XPI 4000L 3D Solder Paste Inspection System Manufactured in 2009, machine condition is excellent. Serial # S1140-004E09 With its revolutionnary warp measurement, this system provides unmatched accuracy for 100% 3D Solder Paste Inspection. Vi TECHNOLOGY ®'s 3D-SPI is the world's first 3D Solder paste inspection system able to measure PCB warp as well as true solder volume without shadow effect within cycle time. On-the fly 3D image acquisition (instead of stop and move) brings faster 3D inspection without loss of resolution. Accuracy and warp compensation Unmatched true resolution, accuracy and repeatability Full-featured absolute measurement of the full board surface, mapping to 0.1µm for every measurement Zero % shadow effect with the structured double light source providing no volume measurement error True volume measurement of board and paste Unique flexible board process measurement Easy operation Easy off-line programming by automatic conversion of Gerber and CAD Data Easy- to-use, highly flexible software On-machine defect review and trend analysis Real-time process monitoring and alarm signal generation Real-time SPC software for process monitoring and defect analysis Full-featured historical drill down of data with intuitive presentation of information Specs : http://www.vitechnology.com/fichiers/files/datasheet_3d_spi_april_2010_135417.pdf Mechanical system (dimensions in mm [inches]) Maximum board dimensions 510 [20] x 460 [18] Board thickness (minimum to maximum) 0.4 to 5 mm [0.01 to 0.19] Clearance under camera 25 [0.98] Clearance under board 25 [0.98] Clamping system edge 3 [0.12] PCB warpage Maximum ± 3.5 [0.13] System accuracy and repeatability (measurement at 21°C ±- 1°C) Measurement repeatability (3 s) Height: < 1.5 µm at standard certification target Volume: < 2 % at standard certification target Measurement accuracy Height: < 3 µm at standard certification target Measurement resolution Height: 0.1 µm Area: 20 µm % Gage R&R < 10% Average inspection speed Inspection speed 20 cm2/sec (without shadow effect) Inspection items Inspection items Height, volume, shape, area, bridge, position Measurable object size Length: 160 ~ 30 000 µm Height: 50 ~ 500 µm Machine Dimensions (W x D x H): 1000 x 1250 x 1490 mm (40" x 50" x 59") Weight: 1080 kg Power: AC 220 V , 22 A , 50/60 Hz Buyer is responsible for shipping Shipping: E-mail any questions about freight shipping prices. We can build custom pallets and crates for an extra charge. International shipping is available on most items please ask before bidding. Returns: All items are sold as-is unless otherwise stated. Returns are not accepted unless item is defective or grossly misrepresented. Notify us of any issue within 7 days of receiving product. Feedback: Feedback is very important and we want happy customers. Please email or contact me with any concerns, issues or problems before leaving feedback and give me that opportunity to work things out if needed. Communication is key. We strive to provide a good product at a good price with fast shipping and great customer service. We realize that mistakes happen every now and then so please talk to us and we will make it right. Please checkout our other products at our ebay store. New items are added daily. Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

Condition

Used :

An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.

Seller Notes

“We do our best to accurately describe every item we sell. If the item is classified as used - the test performed are power up - dry cycle / zero testing. These machines are not refurbished unless specified in the listing and may need minor adjustments or repair. By doing the power up / zero testing we do verify that all of the major components(CPU/Servo Cards/Motors/IO Boards) are working and the machine is complete and functional. All of our items are available to be viewed prior to sale. If your requirement is for a reconditioned / refurbished machine please feel free to contact us - although the prices on those systems is higher - the machine will come in 100% production ready with warranty.”
