Videotek Tvm-821d Waveform/vectorscope/phase Monitor Ntsc With Service Manual

US $95.00

  • Hawthorne, California, United States
  • Jan 29th

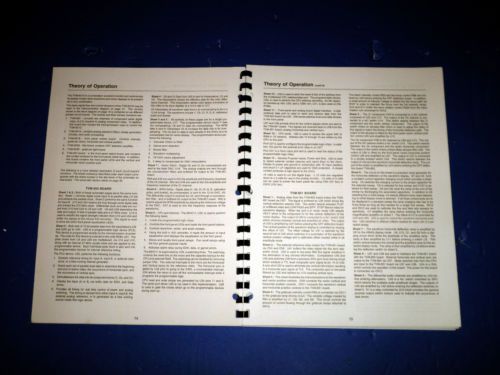

  Videotek TVM-821D Waveform/Vectorscope/Phase Monitor NTSC Includes the Instruction and Service Manual which contains the Theory of Operation, Installation Instructions, Operating Instructions, Block Diagrams, Calibration  Procedure, Troubleshooting Procedure, Parts List and Schematic Diagrams.    With 12 bit processing, the technically advanced TVM-821D serial digital waveform monitor/vectorscope for 601 video brings the most commonly needed functions within quick, easy and affordable reach. With elegance and accuracy, the TVM-821D was developed with the operator in mind, incorporating a button-per-function concept. Intelligent design philosophy makes the operation of the TVM-821D intuitively obvious. A unique feature includes an array of LEDs to continually advise the operator of the input signal strength, alerting the user to data errors due to weak signals. A second unique feature is the ability to observe two digital inputs simultaneously. An A and B display (either in parade or overlay) makes routine tasks such as synchronizing, timing and level setting easy to perform. Other functions include LED alarms to alert the operator of EDH, EAV and SAV data problems. The TVM-821D is the perfect test solution for editing, production and post production, broadcast and remote vehicles Features:                                                                                      Two component serial digital inputs                                                            Button and knob per function design Simple operation A/B input “Overlay” mode for easy system timing A/B input “Parade” mode for level comparison LED alarms for EDH, Gamut and Data errors Input EQ display for quick verification of signal integrity Analog audio input with X-Y display for gain and phase measurement RGB or YCBCR display Four memories for fast recall of set-ups GPI input for memory recall  Looping external analog reference input GPI output for alarm indication
Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...
Brand Videotek
Model TVM-821D
