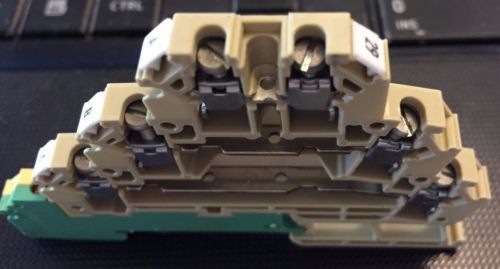

WEIDMULLER MAK-2.5 MAK25 W SERIES SCREW CLAMP TERMINAL BLOCKS, US $2.95 – Picture 0

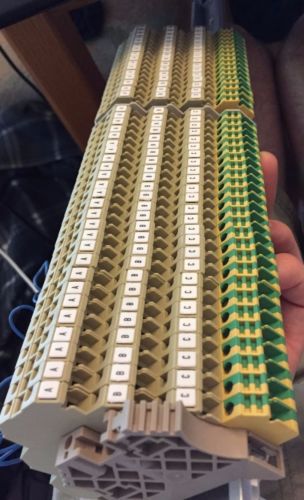

WEIDMULLER MAK-2.5 MAK25 W SERIES SCREW CLAMP TERMINAL BLOCKS, US $2.95 – Picture 1

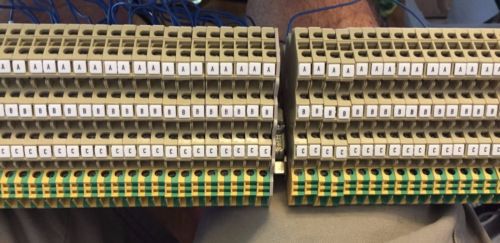

WEIDMULLER MAK-2.5 MAK25 W SERIES SCREW CLAMP TERMINAL BLOCKS, US $2.95 – Picture 2

WEIDMULLER MAK-2.5 MAK25 W SERIES SCREW CLAMP TERMINAL BLOCKS, US $2.95 – Picture 3

Weidmuller Mak-2.5 Mak25 W Series Screw Clamp Terminal Blocks

US $2.95

Sunnyvale, California, United States
Jun 9th

Open on mobile:
QR code

WEIDMULLER MAK-2.5 MAK25 Can fit up to 46 in small flat rate box. Shipping rate will be the same for any quantity up to the 46 max. Will refund over charged shipping if it gets screwed up by the check out process Dimensions Length 88 mm Width 6.2 mm Height 63 mm Height of lowest version 64 mm Open sides right Type of mounting Snap-on CSA ratings data Certificate No. (CSA) 12400-320 Voltage size B (CSA) 300 V Voltage size C (CSA) 300 V Voltage size D (CSA) 300 V Current size B (CSA) 10 A Current size C (CSA) 10 A Current size D (CSA) 10 A Wire cross section max. (CSA) 12 AWG Wire cross section min. (CSA) 26 AWG Clampable wires (additional connection) Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, min. 0.5 mm? Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max. 2.5 mm? Clampable wires (rated connection) Type of connection Screw connection Stripping length 8 mm Blade size 0.6 x 3.5 mm Connection direction on side Number of connections 7 Clamping range, rated connection, min. 0.13 mm? Clamping range, rated connection, max. 4 mm? Clamping screw M 2.5 Tightening torque, min. 0.4 Nm Tightening torque, max. 0.6 Nm Gauge to IEC 60947-1 A3 Wire connection cross section, solid core, max. rated connection 0.5 mm? Wire connection cross section, solid core max. rated connection 4 mm? Wire connection cross section, stranded, rated connection, min. 0.5 mm? Wire connection cross section, stranded, rated connection, max. 4 mm? Wire connection cross section, finely stranded, max. 4 mm? Wire connection cross-section, finely stranded, min. 0.5 mm? Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, min. 0.5 mm? Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, max. 2.5 mm? Cross-section for connected conductor, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, min. 0.5 mm? Wire connection cross-section, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, max. 2.5 mm? Dimensions TS 35 offset 28.1 mm

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	WEIDMULLER
MPN	7917030000
Model	MAK-2.5
