Yokogawa Aq7270 735023 Sm Long Haul Fiber Otdr W/ Power Meter 40db

US $4,495.00

Toledo, Ohio, United States
Jan 29th

Open on mobile:
QR code

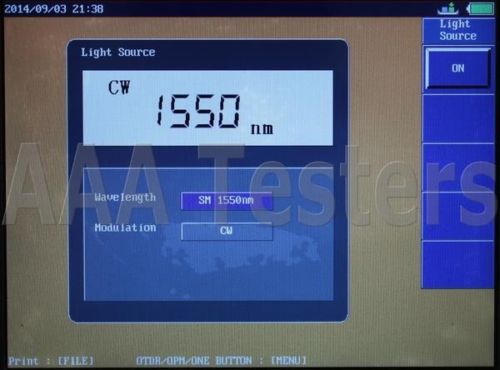

Content on this page requires a newer version of Adobe Flash Player. The Following Items Are Included: Yokogawa AQ7270 OTDR Mainframe (BC# 17772) Power Meter: 1310nm 1490nm 1550nm 1625nm 1650nm 735023 SM Long Haul OTDR Module: SM OTDR Source: 1310nm 1550nm Cletop Reel Type A Fiber Cleaner (2) SM SC-SC Fiber Cables (4) Fiber Optic Wipes Power Cord USB PC Interface Cable User Manual On CD-ROM Carrying Case (G) BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS! This Item Has A Current Calibration! Yokogawa AQ7270 Mainframe w/ 735023 SingleMode 1310 / 1550nm Long Haul OTDR Module Power Meter: - 1310nm - 1490nm - 1550nm - 1625nm - 1650nm Dynamic Range: 1310 / 1550 nm : 40 / 38 dB Includes Carrying Case & Accessories As Listed Above! Working Condition: Excellent Condition: Refurbished Calibrated: Yes Warranty: 90 Day Exchange Warranty Yokogawa AQ7270 OTDR: The AQ7270 OTDR condenses the total working time during on-site tests as the time to power up the device, the time taken to make measurements, and the time to analyze and store the measurement results are reduced significantly. The measurement results can easily be transmitted to computers using the USB interface or the Ethernet and the analysis software (optional) helps with preparation of reports on a computer. The fault event display function detects abnormal connection or reflection points and displays them. Of the events detected by the event detection function, abnormal events that cross a specified threshold value are highlighted in the event table and waveform display. Simply choose the measured wavelength, then press a button. The AQ7270 automatically sets the optimal measurement conditions, performs measurement, performs event analysis, and saves data. Because you can save to a different file name each time you execute, measurement and accumulation of data is easy. Prepare multiple wavelengths to measure, then press a button. Multi Wavelength Measurement is a mode in which multiple specified wavelengths from the same optical port are measured automatically in order. You can also specify to perform analysis or file saving as needed for each measurement. Simply choose previously set measurement procedures, then press a button. You can execute up to five saved measurement procedures in order. A batch of measurement procedures can be run directly from the main menu. Measurement and analysis conditions can be read from a file, making it easy to set up the measurement procedures. Features: World's Shortest Dead Zone*: <0.8m (2.7 ft) Enables multiple close range event detection Multiple Functions: Optical Monitor, Light Source, Built-in printer, Built-in Dummy Fiber and more Large and Bright 8.4” LCD on a lightweight, compact, and solid body Less than 10 sec. Power-up Time: Enables users to start testing in just seconds One Button Testing: Executes programmed procedure to improve productivity drastically Specifications: Model AQ7270 Display 8.4-inch TFT LCD color display, 640?480 points Display horizontal axis View range, km 0.5, 1, 2, 5, 10, 20, 50, 100, 200, 300, 400 Measurement of distances Distance between any two points are displayed at reflectogram as an eight-unit number Distance measurement error 1 m or ‘distance’ *2*10-5 (the greater one) Readout resolution, cm 1 (minimum) Sampling density, m 0.05, 0.1, 0.2, 0.5, 1, 2, 4, 8, 16, 32 Number of points in reflectogram Up to 50000 points Range of group-refractive index 1.30000 … 1.79999 with a step 0.00001 Display vertical axis Attenuation scale, dB/div. 0.2; 0.5; 1; 2; 5; 7.5 Readout resolution, dB 0.001 (minimum) Loss measurement Signal level is displayed a five-unit number in step 0.001 dB. Functions of loss measurement at fiber section, long attenuation, loss at local inhomogeneity Return loss measurement Functions of local inhomogeneity reflectometry, and measurement of total reflection factor at a line section Loss measurement error, dB/dB 0.05 General characteristics Laser Laser of Class 1 ? (standard IEC60825-1:2001) Optical pulse length 3 ns, 10 ns, 20 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 mcs, 2 mcs, 5 mcs, 10 mcs, 20 mcs Optical fiber type SM 10/125 (ITU-T G.652) Optical connector Adapter SC/FC Memory Not less than 1000 “scan images”. Measurement results and settings can be saved at an auxiliary memory connected via interface USB 1.1. Interfaces USB 1.1 type ? – for external memory and printer USB 1.1 type B – for PC connection Ethernet – supports FTP protocol Network adapter 100-240 V, 50/60 Hz, up to 70 W (when printer in use or battery charging); Battery Type: NiMH. Operation without recharging: about 6 hours (30 sec. of measurement every 10 minutes, in energy-saving mode). Charging duration: less than 5 hours. Operation temperature from 0 to +45°? (from 0 to +35°? at battery charging) Storage temperature from -20 to +60°? Relative humidity Not more than 85% (without condensation) Dimensions and weight about 287 mm ? 197 mm ? 85 mm (W?H?D), about 2.8 kg 735023 OTDR Module Specifications: Applicable Fiber SMF Number of Wavelengths 2 Wavelength 1310/1550nm Dynamic Range 40/38dB Please check our Huge Inventory with savings of up to 80% off of retail on Cat5/5e/6 LAN Cable Certifiers and Fiber Optic OTDR's, Fusion Splicers, CATV Meters, Fiber Optic Kits, Sources, Meters, Tools, Network Analyzers and much more. Here is a Link to our Ebay Test Equipment Store. All of our Test Equipment is backed with a Full Warranty and unbeatable customer support & service. Please don't hesitate to contact us for a Quote on Something you don't see in our inventory, sometimes we have items that may have not been listed or processed yet. Test Equipment Store Offers a wide range of Refurbished Telecom/ Datacom Tools and Test Measurement Equipment. Which includes Fiber Optic Test and Splicing tools, Fusion Splicers, OTDRs, Copper and Fiber Cable Certifiers, CATV Test Equipment, Cable and Antenna Analyzers, Network Analyzers and much more! We carry a large inventory of quality refurbished and used test equipment from all the major manufacturers. If you are looking for multiple quantities or if we don't have a listing for a particular item that you are looking for. Please contact us as it may be fresh inventory waiting to be listed or we'll be glad to find it for you at the best price possible and put up an eBay listing for you! Contact: Test Equipment Store eBay Sales Phone: 1-419-517-6681 Toll Free : 1-800-548-2381 We Ship World Wide! We will attempt to ship your item(s) within 24 hours after payment has been received. To get a real-time shipping quote to your destination, enter your country and zip / postal code information into the shipping calculator and click "Get Rate". Many countries impose their own customs, duties, tariffs, taxes, etc. on items being shipped from a foreign country. We do not cover those cost's and we recommend that you contact your countries customs agency for that information. We Offer Multiple Quantity Price & Shipping Discounts, Email Us If You Are Interested In Larger Quantities. UPS Ground United States USD 0.00 USPS Express Mail International (EMS) Worldwide USD 0.00 We accept credit card payment transactions via the online checkout system! The checkout process is designed so that it communicates with the merchant to confirm that payment has been made and cleared. Other methods of payment are outlined through the online checkout process. Winning bidders must contact us within 3 days after auction close if special payment arrangements are needed. Your payment is expected within 5 days after the auction close. Unpaid auctions will be forfeited after 5 days of the auction close and the Item(s) will be relisted for sale. Items will be shipped within 24 hours (1 Business Day) upon receipt of payment from the winning bidder. (Certain orders may take longer for processing due to comprehensive final service inspections) A Shipment Tracking number(s) will be provided to inform Buyers of their expected ETA (Estimated Time of Arrival). Tracking number(s) will be provided the same day as order shipment. Thank you ALL MAJOR CREDIT CARDS & PayPal ACCEPTED Put your listings on autopilot with Kyozou eBay Listing Software

Condition:	Seller refurbished: An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent condition. This item may or may not be in original packaging. See the seller’s listing for full details. ...	Brand	Yokogawa
Model	AQ7270
