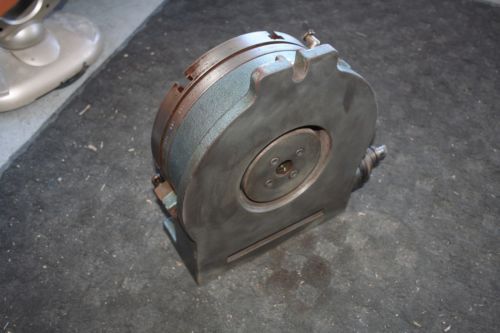

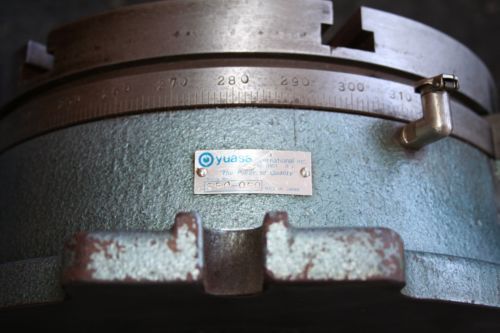

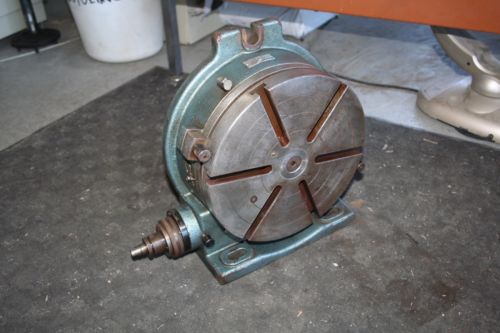

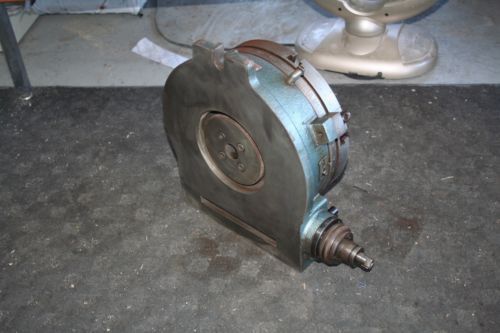

Yuasa 550-050 10" Diameter Vertical Rotary Machining Table

US $450.00

  • Westland, Michigan, United States
  • Mar 26th
Open on mobile:
QR code
YUASA Rotary Machining Table Setting Position Vertical Tilting (Yes/No) No Cross-Slide (Yes/No) No Table Diameter (mm) 250.03 Table Diameter (Inch) 9-27/32 Table Diameter (Decimal Inch) 9.8438 T-Slot Width (mm) 11.94 T-Slot Width (Decimal Inch) 0.4700 Centerline Height (mm) 165.10 Centerline Height (Decimal Inch) 6.5000 Number of T-Slots 6 Center Taper 3MT Vernier Reading (sec.) 10.00 Gear Ratio 90:1 Indexing Accuracy (sec.) 45.00 Squareness - Clamp to Center Slot (mm) 0.02 Squareness - Clamp to Center Slot (Decimal Inch) 0.0008 Squareness - Clamp to Angle Face (mm) 0.01 Squareness - Clamp to Angle Face (Decimal Inch) 0.0004 Center Hole Concentricity (mm) 0.02 Center Hole Concentricity (Decimal Inch) 0.0008 Flatness of Surface (Decimal Inch) 0.0006 Flatness of Surface (mm) 0.02 Parallelism - Clamp Surface to Base (mm) 0.02 Parallelism - Clamp Surface to Base (Decimal Inch) 0.0008 Base Width (mm) 113.03 Base Width (Decimal Inch) 4.4500 Base Length (mm) 249.94 Base Length (Decimal Inch) 9.8400 Overall Height (mm) 325.00 Overall Height (Decimal Inch) 12.7953
“Used but in very good condition”
Manufacturer Yuasa
Model 550-050
Country/Region of Manufacture Japan
MPN 550-050
Brand Yuasa
