0mhz-8mhz Dual Channel Dds/ttl Source Function Signal Generator Module + Sweep

US $1600

ShenZhen ,Guangdong, China
Jan 29th

Open on mobile:
QR code

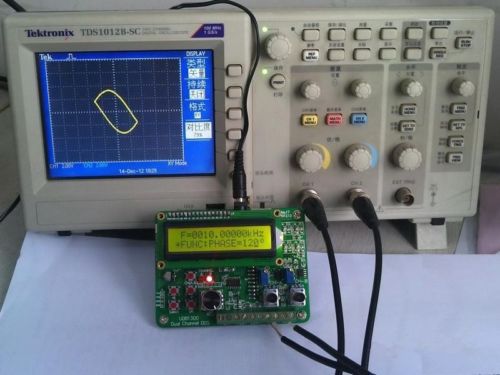

0MHz-8MHz Dual Channel DDS/TTL Source Function Signal Generator Module + Sweep Click to Enlarge Click to Enlarge Click to Enlarge Click to Enlarge Click to Enlarge Click to Enlarge Click to Enlarge Click to Enlarge 8MHz DDS Function Signal Generator Module Sine/Triangle/Square Wave TTL Output With Sweep Fuction A.B Dual channel signal output Introduction of the instrument This is a complete 8M DDS signal source, the use of DC 5V power supply that can output sine, square wave (1% -99% duty cycle can be adjusted), triangle wave, and sawtooth waveforms and other functions, the maximum output of up to 10Vpp, frequency from 0.0Hz-8MHz .a resolution of 0.1Hz, both with dual reverse TTL output, can produce digital adjustable duty cycle of IGBT for driving two TTL signals , with a 60MHz frequency counter, , so the DDS product combines many functions in one. Main technology data A.B dual channel Output waveforms Sine wave, Square wave and Triangle wave ,sawtooth , Lee Sand sterile A.B dual channel Output amplitude ≥10Vp-p (signal output, no load)(MAX)About 0.1Vp-p (MIN) Output impedance 50Ω±10%(signal output) DC offset ±5V(no load) Display LCD1602 Frequency range Sine: 0.01Hz ~ 8MHz Square wave : 0.01Hz-1MHz ( the valid range ) Triangle wave : 0.01Hz-1MHz ( the valid range ) Sawtooth wave : 0.01Hz-1MHz ( the valid range ) Resolution 0.01Hz(8mHz) Frequency Stability ±1×10-6 Frequency accuracy ±5×10-6 Sine wave distortion ≤1% (reference frequency is 1kHz) Trinagle linearity ≥98% (0.01Hz~100kHz) Rise and fall time of square wave ≤30ns Square Wave Duty range 1%~99%(digital control mode) Two TTL Output function Frequency range 0.01Hz ~ 8MHz Amplitude >3Vp-p Fan Out >20 TTL loads COUNTER function Counter Range 0-4294967295 Frequency Meter Range 1Hz~60MHz Input Voltage Range 0.5Vp-p~20Vp-p SWEEP function Frequency range fM1 to fM2 Sweep time 1s~99s A, B two output signals phase : 0 - 360 degrees adjustable A , B two output signals can be tracking adjustment Package : DDS module x1 5v power supply x1 SHIPPING All the items will be dispatched within 1 business day by Hong Kong Airmail after the payment is clear. Items will arrive in 7-25 business days. The arrival time depends on some factors and different areas: Please choose some local sellers, if you cannot wait patiently in the shipping time we declared. Once you purchase, please DON?T leave negative or neutral feedback if you haven?t received item in 30 days, because we have mentioned the shipping time repeatedly. Customs duty is obligation and liability of a citizen in your country, so buyer should be responsible for any tax and custom duty incurred. For example, Laser Pointer is unacceptable in some countries. Therefore, please double check your local customs policy carefully before purchase. Or, we will NOT be responsible for any failure delivery related destination customs issue. PAYMENT We accept PayPal only. We only ship item to your PayPal verified address. Payment must be received within 3 Days from the date of purchase. Please leave note in PayPal when making the payment if you have any special request (colors/size). Orders will be processed instantly and dispatched in same day normally, so we do NOT accept any Email/Message note before or after you place orders. REFUND & REPLACEMENT POLICY All the products we are selling include factory warranty, don?t cover items that have been abused, burned and damaged in any form. Please contact us via eBay Message if you have NOT received item in 30 days, we will check it with post office, and then resend or refund any missing item. In the unlikely event that your product is faulty in anyway, you must contact us ASAP and then return it within 7 Days of receipt. The postage and packaging fee will NOT be refunded. We will not be responsible for the delivery or insurance charges incurred in returning item back to us. If you return an item purchased from us, it must be back in Factory Condition. This includes packaging, inserts, manuals etc. Please allow up to 5 Working Days for us to process your returned item. FEEDBACK & CONTACT US If you have any questions, please feel free to email our service specialists 24 Hours a Day, 7 Days a Week. We will reply you ASAP. If no response within 24 Hours, please check the spam in your mail box. We greatly appreciate your POSITIVE feedback. Please do NOT leave negative feedback without asking for help. Our aim is to provide Top Level Customer Service, normally so we will try our best to solve any problem. Please DON?T leave negative or neutral feedback if you haven?t received item in 30 days, because we have mentioned the shipping time repeatedly. inkfrog terapeak i000000 On Sep-21-14 at 18:15:14 PDT, seller added the following information:
