Ad9854 100mhz Sine Wave Dds Signal Generator + Pc Software Control Fsk Bpsk

US $2900

Shen Zhen, China
Jan 29th

Open on mobile:
QR code

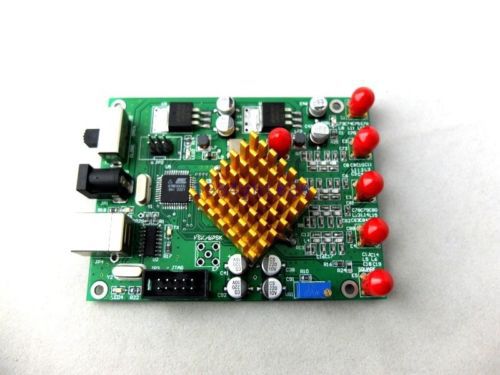

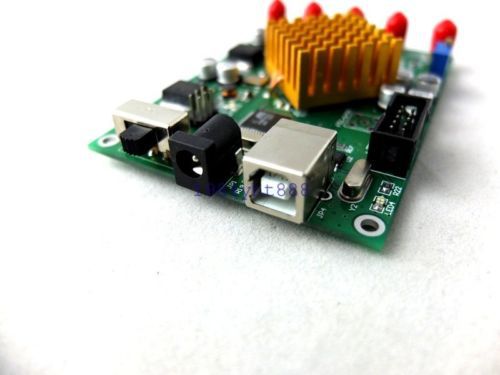

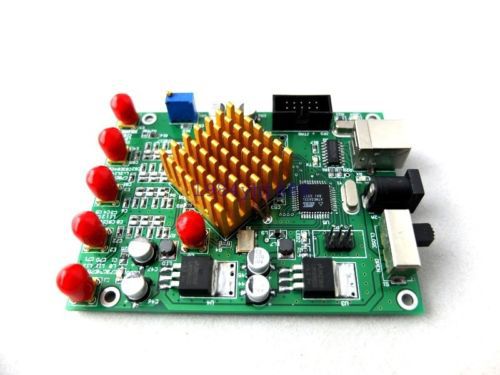

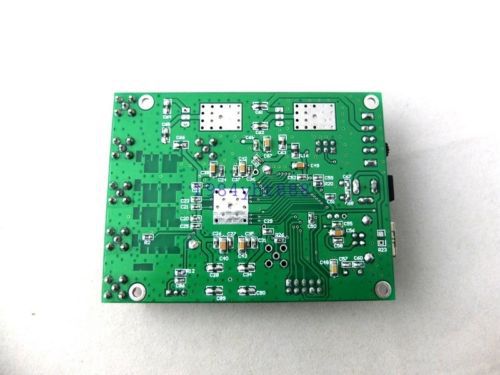

AD9854 100Mhz Sine Wave DDS Signal Generator + PC Software Control FSK BPSK AD9854 100Mhz Sine Wave DDS Signal Generator + PC Software Control FSK BPSK Product Description AD9854 100Mhz Sine Wave DDS Signal Generator + PC Software Control FSK BPSK Frequency / Phase / Amplitude controllable from PC with Software in English Introduction of the instrument: Based on advice of previous buyers, we have changed the previous serial connection interface to USB interface, for better more convenient use. Other features remain unchanged: same top performance! This is a 0~100MHz DDS Signal Generator. It is based on the most advanced AD9854 (which has far versatile functions as compared with AD9850/9851) chip and is very easy to operate. Can do experiments for Single Tone, FSK, Ramped FSK, Chirp, BPSK etc... that AD9854 incorporates!!!! 4 channels Sine Wave output: 0, 90, 180, 270. One channel square wave output. Two sets of software (in English) are provided: Set 1 software manages frequency control data from PC, the MCU will manage data communication. Set 2 sends parameters from PC. MCU processes frequency control data Features: - Output two groups of differential signaling (0, 90, 180, 270) Sine Wave that can reach highest 100Mhz, and we can adjust frequency, phase, amplitude via software on PC. In the meantime, output one group of square wave. - Designed by very experienced engineer. The output signals are BEAUTIFUL! - High power IC ensures the module works at good, stable performance. The module is also meticulously designed so keep heat at a VERY low level. This makes the module can work long time at 100Mhz. - The module comes with MCU control. Can communicate with PC or other MCU via serial interface on the module, so we can easily control output wave. - We provide software in English, as well as VB source code. So it is very helpful for VB learning. - The module can operate all functions of AD9854: Single Tone, FSK, Ramped FSK, Chirp, BPSK. - AD9854 base drive function database provided, so user can very conveniently write control program for the chip. Programe list as follows: void init_9854(void); void AD9854_phase1_adjust(unsigned int phase_value); void AD9854_phase2_adjust(unsigned int phase_value); void AD9854_frequency1_tuning_word(double frequency_value); void AD9854_frequency2_tuning_word(double frequency_value); void AD9854_delta_frequency_word(double delta_frequency_value); void AD9854_update_clock(unsigned long update_clock_value); void AD9854_ramp_rate_clock(unsigned long clock_value); void AD9854_control_bit(struct AD9854_bit control_bit_value); void AD9854_I_gain(unsigned int gain_value); void AD9854_Q_gain(unsigned int gain_value); void AD9854_shaped_keying_ramp_rate(unsigned char ramp_value); void AD9854_QDAC(unsigned int QDAC_value); Specifications: Size: 72 * 98 mm Work at 5V / 1A Max output: 100Mhz(sine) ,10Mhz(Square wave) Step: 1Hz Amplitude adjustable, control precision 12BIT adjustable Package : 1 x DDS Signal Generator Module (100Mhz max) 1 x SMA Cable (for connection from module to oscilliscope) 1 x USB cable Software and source codes to be sent via Email. Note: The module works at 5V / 1A. As there are so many plug differences from country to country, we basically do not provide power voltage converters for this product. Test pic: Our Working Time is as below (GMT+8): 9:30AM -- 6:00PM (Monday to Friday) Please allow us at least 24 hours to reply you when in the office, thanks! Shipping If you intend to bid for more than 1 item, then we can ship them together. The total shipping fee will be the sum of individual shipping fees. There is no further discount. We only ship to ebay registered address. So please be assure your address in ebay is Correct and Valid. Item will be shipped within 24 hours on payment received from Hong Kong using Airmail. Delivery time depends on destination and other factors, it may takes up to 30 business days. Optionally, Express Shipments with tracking service via EMS/DHL/UPS with a quoted delivery time of 5 to 7 business days is also available Here is the estimated time for your reference only: The delivery time may vary due to public holidays, countries, and customs etc. Thanks for your understanding! We ship item promptly and please rate us 5 star on shipping time according to ebay rules. http://pages.ebay.com/help/feedback/detailed-seller-ratings.html Feedback The delivery time may vary due to public holidays, countries, and customs etc. Thanks for your understanding! If you are considering giving a neutral or negative or a low DSR(4 star or below), do write to us and give us an opportunity to address your concerns first. We are always stand-by to help for any questions or concerns. Positive feedback is automatically left for you after you left to us positive feedback. Return Returns: We stand behind every product we sell. If you're not pleased with your purchase, please kindly contact our customer service representatives via email or ebay "Contact seller" for an authorized RMA number. Your returned product(s) will not be processed without a RMA. Buyer is responsible for return costs. Payment PayPal payment only. Any VAT or TAX are not counted. If buyer required to cancel bid for their mistake or any other personal reasons, 5% of the total price is charged for relisting and restocking fee. We didn't ship to Africa, Italy, China,HongKong, Macau,Taiwan due to cross-border express delivery and customs issue ,pls understand and pay your attention to it before bidding or buying. inkfrog terapeak i000000 On Sep-21-14 at 18:19:47 PDT, seller added the following information:
