BECKHOFF BK3520 Profibus-Coupler, US $130 – Picture 0

BECKHOFF BK3520 Profibus-Coupler, US $130 – Picture 1

BECKHOFF BK3520 Profibus-Coupler, US $130 – Picture 2

BECKHOFF BK3520 Profibus-Coupler, US $130 – Picture 3

Beckhoff Bk3520 Profibus-coupler

US $130

Rechitsa, Gomelskiu, Belarus
Jan 29th

Open on mobile:
QR code

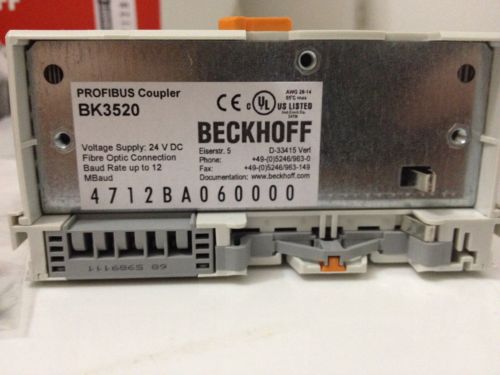

BK3520 | PROFIBUS “Economy plus” Bus Coupler, fibre optic The BK3520 “Economy plus” Bus Coupler links a fibre optic PROFIBUS system to the modular, extendable electronic Bus Terminal system. With the K-bus extension technology up to 255 spatially distributed Bus Terminals can be connected to one Bus Coupler. The particular feature for the BK3520 Bus Coupler is its fibre optic connection and its high transmission rate of up to 12 Mbaud. The fibre optic link guarantees that the transmission is free from electromagnetic interference and provides full electrical isolation. An interface-module is necessary to translate between the physical properties of RS485 to those of an underlying optical fibre ring. The topology corresponds with the RS485 physics (line topology). For this reason, the BK3520 possesses two transmitters and two receivers. The address is set by the address selection switch. The baud rate is automatically recognised. Baud rates of up to 12 Mbaud are supported, so that the transmission speed can be adapted to meet the needs of the particular technical process. The “Economy plus” Bus Coupler has been designed to accommodate automation requirements. PROFIBUS protocols omit FMS operation in order to be able to transfer more user data in DP mode. The BK3520 incorporates the PROFIBUS DP V1 services. System data PROFIBUS | BK3520 Number of I/O stations 100 with repeater Number of I/O points approx. 6,000, depending on the master Data transfer medium APF (plastic) fibre (1,000 µm) Max. cable length 40 m between two stations Data transfer rates up to 12 Mbaud Data transfer time approx. 3 ms (10 stations for 32 bit input and output each) approx. 0.5 ms Technical data BK3520 Number of Bus Terminals 64 (255 with K-bus extension) Max. number of bytes fieldbus 128 byte input and 128 byte output Digital peripheral signals 1,020 inputs/outputs Analog peripheral signals 64 inputs/outputs Data transfer rates automatic detection up to 12 Mbaud Bus interface 4 x HP-Simplex sockets (HP-Simplex plugs ZS1031-3500 included) Topology line topology Data transfer medium APF (plastic) fibre (1,000 µm) Power supply 24 V DC (-15 %/+20 %) Input current 70 mA + (total K-bus current)/4, 500 mA max. Current supply K-bus 1,750 mA Power contacts 24 V DC max./10 A max. Electrical isolation 500 V (power contact/supply voltage/fieldbus) Distance between stations 40 m Weight approx. 170 g Operating/storage temperature 0…+55 °C/-25…+85 °C Relative humidity 95 %, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. class/installation pos. IP 20/variable Approvals CE, UL, Ex

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	BECKHOFF
Country/Region of Manufacture	Germany
Model	BK3520
