Ford Tractor Oil Chart Oring Chart Hyd Hose Chart

US $1900

  • Reynoldsville, Pennsylvania, United States
  • Jan 30th

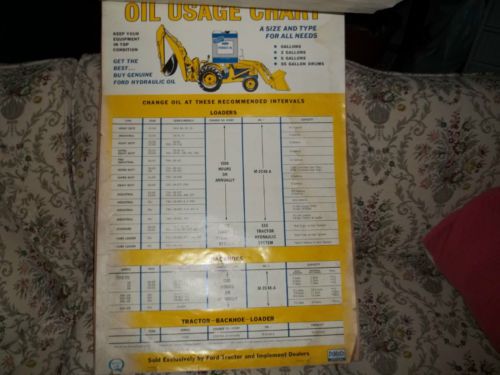

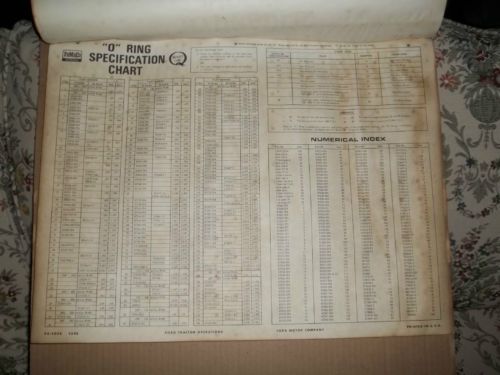

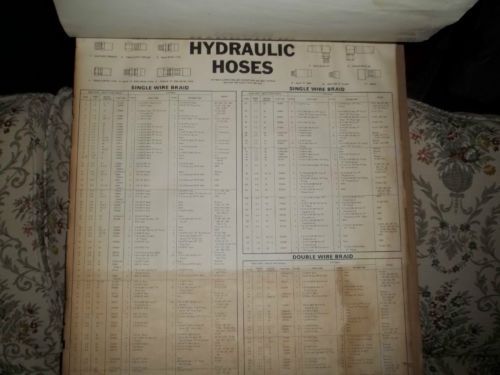

I am selling all four charts together. The charts are stapled together as they were when the Ford dealer had it when  hanging on the wall at the dealership. I removed the wood board that was used to attach to the wall. These charts came from a Ford tractor dealer who closed the dealership in about 1987. I bought these and the remaining parts in the inventory. These charts were used by mechanics and parts dept. for a quick reference. Some of you may remember seeing these charts. The blue and yellow charts are worn, torn, aged and missing a few pieces that have been torn from use. The other two charts are complete. These charts are rare, as most have been lost or destroyed. I estimate these charts to be about 47 years old. These charts are great for the Man Cave, garage or something to add to your collection. I will ship charts flat, on cardboard and reinforced with wood border. The first 3 charts measure 22"x34" long, the o ring chart is 22x16.5 long. The oil part numbers are the original number, M-2C-41, M-4864-A and M-2C53-B. There used to be 3 oils used, now there is one blend of hydraulic oil used. What you see in the 4 pictures is a rare find.  The first pic. is the Hydraulic Oil usage chart for all Ford tractor built from 1939 to 1975. It shows tractor model, change intervals in hours, Part number of oil and capacity. The second pic. is the same, but it list all the Industrial loaders, backhoes and Tractor loader backhoe model 5500. The third pic. is a hydraulic hose chart used on all tractor, loader and backhoes built up to 1968. It lists part number, I.D. of hose, length, size of fitting on each end and model hose is used with. The fourth pic. is a o ring specification chart. Shows part number and size, I.D. and O.D. o rings.  If you have questions, please ask. Thank you for looking.
