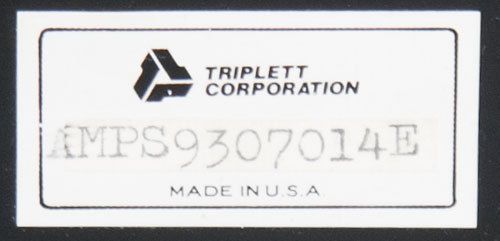

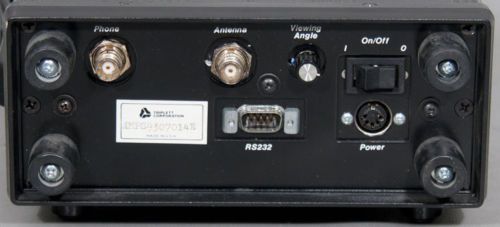

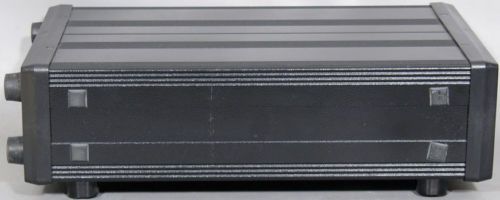

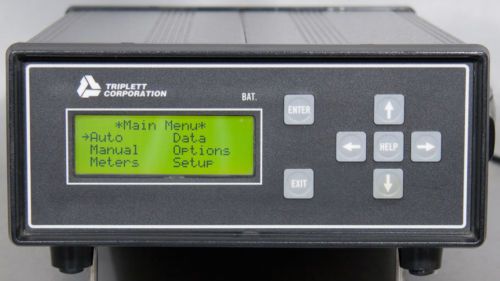

Click Here. Double your traffic. Get Vendio Gallery - Now FREE! Triplett 5000 Portable Cellular EAMPS Test Set Comes with a manual and what you see in the pictures. If you don't see it, you probably wont get it. Specifications are from Triplett and may vary slightly due to upgrades, options, or revisions this unit may or may not have. The unit is guaranteed to be in working condition. The battery probably needs to be replaced. Unit Information: Serial Number: AMPS9307014E Version: 3.074 Description: Finally, there's a truly portable cellular test set that will fulfill all of your installation and repair requirements. The new and improved Triplett 5000 Series. With new features previously not available, The 5000 Series has the capability to automatically check over 40 different phone functions, so you'll be confident that your phone installation is error free, every time. This not only makes for a satisfied customer, but also saves you valuable, non-billable time on reworks, thus leaving you with more time for more installations. The new 5000 Series comes with various "User Definable Options" and is available in models with 110V power supply and EAMPS. All of this at a price thousands of dollars less than their competitors. Auto Test Mode: The Triplett 5000 will automatically run through a series of over 40 tests indicating the results with either pass (P) or fail (F) and actual measurements. These tests include: Registration: includes display of MIN (phone number) SCM (Station Class Mark) and ESN (Hex, Dec 1 and Dec 2 Format) Paging of Phone Initial Voice Channel Hand-off SAT Frequency Measurements including SAT FM Deviation (all three tones) Alert Voice Channel Audit Tests and measures all 8 power levels Hand-offs - automatically tests 3 hand-offs including RF frequency measurements Send Number Sensitivity (Go/No-Go Test) Release ST flash time measurements ST FM Deviation Power Test on 1 or 3 Channels, as selected by user Manual Test Mode: While in the Manual Test Mode, the technician has the flexibility to choose which tests to run while linked to the phone. Therefore, if the technician knows where the trouble is, he doesn't have to run through the whole series of tests as he would in "Auto" Mode. Some of the problem areas a technician may choose to troubleshoot include: View MIN, SCM, and ESN (Hex, Dec 1, Dec 2, formats) Manually perform hand-off to any voice channel (including changing SAT) "On-Line and Real-Time" view of RF and SAT Frequency, FM Deviation, RF power level (plus change capability) Quick check of transmit and receive audio VSWR Meter: To Ensure Optimum Antenna Operation: Antenna placement and operation is very critical in the performance of a cellular phone. The Triplett 5000 comes with a built in VSWR meter which ensures that the antenna is free of any interference and in perfect working condition. Meters Test Mode: While in the Meters Test Mode the Triplett 5000 Series acts as an on-line, real time, RF frequency counter, an FM modulation meter or an RF power meter. With the phone in the manual test mode, the technician may adjust these critical parameters without the need of additional test equipment or a cellular link. Specification Features: Auto, Manual and Meter Test Modes Tests over 40 critical phone functions including RF Power, RF Frequency and FM Deviation Built-in VSWR test meter, frequency counter, power meter and deviation meter DTX test Cell Site Simulation with selectable system (A or B) and programmable SID Power-On self-test Easy-to-operate menu interface Push-button on-line help Output port for external serial printer Powered by AC line, car battery or rechargeable internal battery (minimum of 2 hours use) 80 character, 4-line LCD screen Adjustable display backlight and viewing angle Low battery indicator and audible alarm Fully portable, weighs less than 10 pounds Auto Test results include pass/fail indication Three memory locations for storing test results Test data can be displayed in dBm or Watts User Programmable Print Header, 5 lines x 80 char. Software updates via the RS-232 port Generate Specifications: Low Output Level: -116dBm +2 -0dBm High Output Level: -77 ±5 dBm Frequency Range: 869 - 849 MHz SAT Frequency (kHz): 5.97, 6.0, 6.03 ±1 Hz SAT Deviation: ±2 kHz, ±10% Data Deviation: 8 kHz ±10% Monitor Specifications: Frequency Range: 824 - 849 MHz VSWR Measurement: Range: 1.1 to 5.0:1 Accuracy: ±10% Power Measurement: Range: +6dBm to 36dBm Accuracy: ±10% ±1 mW Frequency Measurement: Range: 824 - 849 MHz Resolution: 32Hz Accuracy: Same as time base Deviation Measurement: Range: 1kHz to 10kHz Accuracy: 10%, ±100Hz ST Time Measurement: ±10mS General Specifications: Time Base: Stability: 0.25 ppm Temperature: 0°C to 40°C Ageing: ±1.0 ppm/year Channel Spacing: 30kHz (832 channels) System Registration (Selectable): A - none-wireline, B - wireline SID: Assign a SID to each system, A & B, and retain in non-volatile memory RF Connectors: TNC Printer Output Port: RS232C, 9 pin Sub D Line Power: 110 VAC Line Frequency: 50-60Hz External DC Power: 10.5 - 15VDC Battery: Internal, Rechargeable by Power Pack Battery Operating Time: Minimum of 2 hours, Alarm to notify users if the battery charge fails below levels required to properly carry out test functions. Size: 4.0" x 8.5" x 13.5" Weight: 9 lbs - does not include packaging. Certifications: UL and CSA approved. For More Pictures Please Click the Following: Picture 2 - Front View Picture 3 - Back View Picture 4 - Right Side View Picture 5 - Left Side View Picture 6 - Serial Number Tag For Domestic Customers: Packaging, handling, and order processing included in shipping in all domestic shipments as quoted by the shipping calculator. For International Customers there is a $10.00 minimum for packaging, handling, and order processing. International shipping to be determined by destination. If you have any questions please call Michael at 1-866-MHZ-ELEC (1-866-649-3532) Toll Free. Also, please click here to view or other auctions! 03/03/14 Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.
