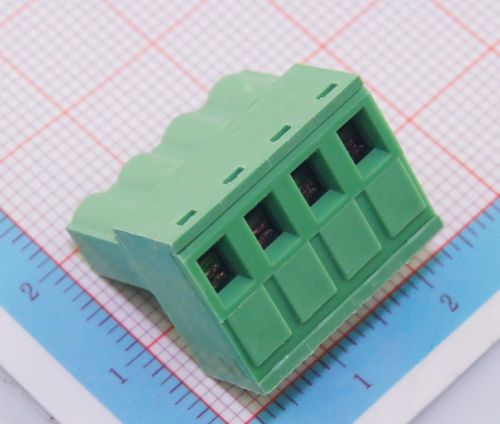

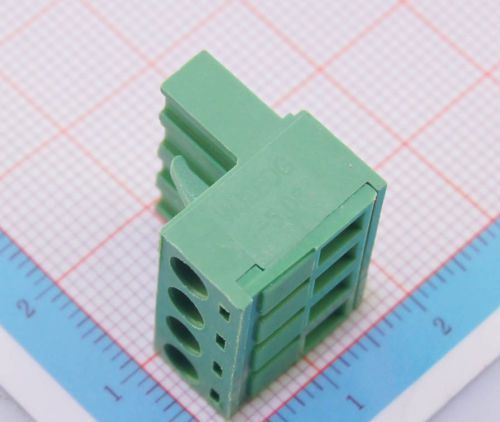

100pcs 2edgk-5.08-4p 4p/way 5.08mm Pitch Screw Terminal Block Connector Angle

US $25.99

  • Shenzhen, China
  • Jan 29th
  100pcs  2EDGK-5.08-4P  4P/way 5.08mm Pitch Screw Terminal Block Connector Angle  Model:#1388 2EDGK-5.08-4P Quantity: 100 Pcs Condition: Brand New Spec: Material - Housing:     PA66   UL94V-0 - Contact: Phosphor bronze,Ni plated - Solder pin: Brass,Tin plated - Screw:       M2 ,Steel,Zinc plated Electrical - Rated voltage:              300V - Rated current:              8A - Insulation resistance:   5000M?/1000V - Contact resistance:      20m? - Withstanding voltage:  2000V/1min - Wire range:              26~16AWG Mechanical & operating ambient - Torque:            0.2Nm - Strip length:        5~6mm - Temp.Range:     -40°C~+105°C - MAX soldering:  +250°C 5Sec
