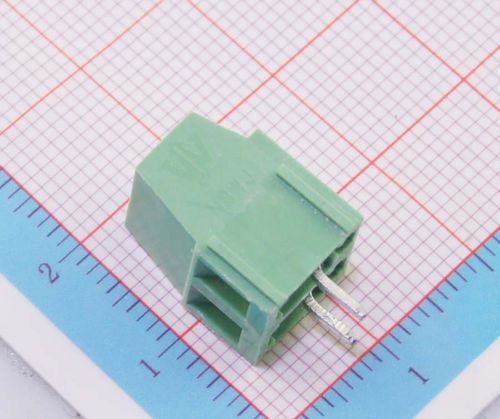

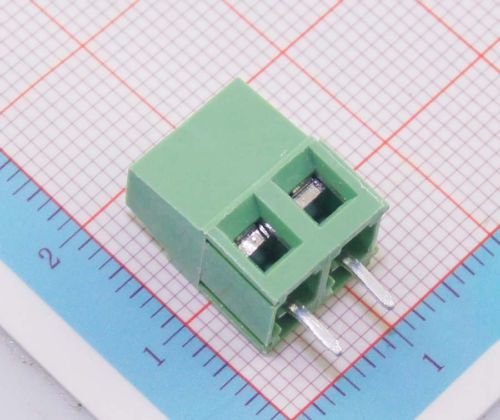

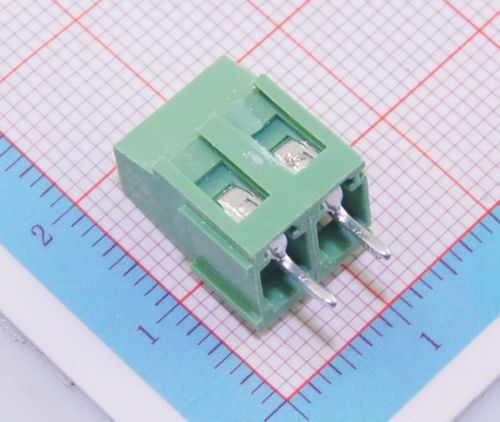

100pcs 500v-5.08mm-2p Pitch Screw Terminal Block Connector Panel Rohs Dip

US $19.90

  • Shenzhen, China
  • Jan 29th
  100 Pcs Pitch 2 way/pin 5.08mm Pitch Screw Terminal Block Connector  Green Color, RoHS  \500V-5.08-2P + Free shipping Model:#1305 Quantity: 100 Pcs Condition: Brand New Spec: Material - Housing:     PA66   UL94V-0 - Contact: Phosphor bronze,Ni plated - Solder pin: Brass,Tin plated - Screw:       M2 ,Steel,Zinc plated Electrical - Rated voltage:              300V - Rated current:              8A - Insulation resistance:   5000M?/1000V - Contact resistance:      20m? - Withstanding voltage:  2000V/1min - Wire range:              26~16AWG Mechanical & operating ambient - Torque:            0.2Nm - Strip length:        5~6mm - Temp.Range:     -40°C~+105°C - MAX soldering:  +250°C 5Sec Part. No.: DG-1305:500V-5.08-2P If you do not find the model you need, please contact us freely.
