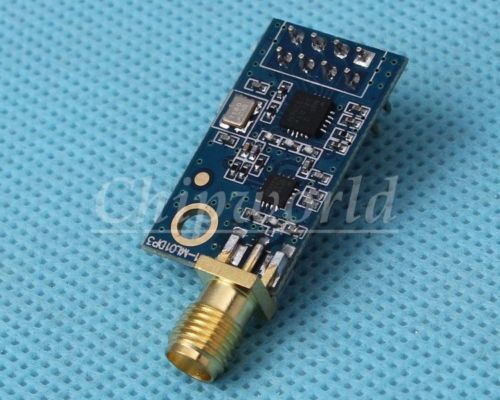

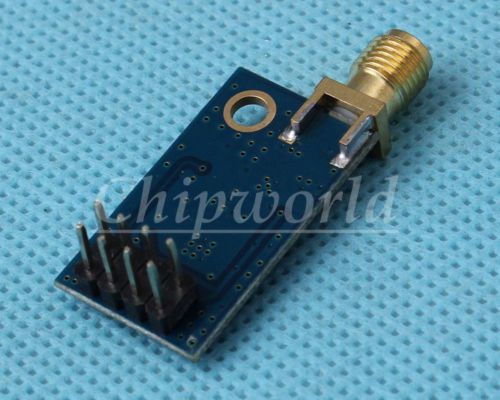

1pcs 2.4g Nrf24l01p+pa+lna Wireless Transmission Module 100mw 22dbm New

US $140

  • Shenzhen, China
  • Jun 9th
Click to Enlarge Click to Enlarge Click to Enlarge Product Name: 2.4G nRF24L01P+PA+LNA Wireless Transmission Module 22dBm 100mW 2.4GHz More Items In Our Store,Click Here!   SKU: 4619 Parsts No. : Package: Brand: Quantity: 1   2.4G nRF24L01P+PA+LNA Wireless Transmission Module 22dBm 100mW 1. Basic information?     Model: E01-ML01DP3 Center frequency: 2.4GHz measured distance: 1100m max power: 100mW component source: imported components Features: Support 1.9V minimum voltage 2.Products 3.performance parameters? Module Size?15*27mm interface method?2*4*2.54mm?can use universal board or  Dupont Line? Power Supply?2.0V??3.6VDC Measured distance?1100m Communications  levels?0.7VDD??5.0VDC Maximum power?20dBm Gbps?250k,1M,2M, Adjustable Emission current?95mA Sinks current?20mA Communication interface?Standard SPI mode Transceiver length?single packet?1?32 bytes?3 FIFO buffer RSSI support? Does not support the true meaning of RSSI,Only supports packet loss statistics Working temps?-30?~+85? Working Humidity?? 90% RH Storage Temp?-40?~+125? Operating frequency?2400MHz-2525MHz?1MHz step ?Through software control? Receiving Sensitivity?-102dBm 4. Pin Definitions?    Name  Direction  Use 1 GND   Ground, connected to the power ground reference 2 VCC   power pin?Must be 2 - 3.6V 3 CE  Input Control module pin 4 CSN  Input Module chip select pin?To start a SPI communication 5 SCK  Input The SPI bus clock 6 MOSI  Input Module SPI data input pin 7 MISO output Module SPI data input pin 8 IRQ output Module interrupt signal output, active low 5. Circuit  diagram?   Any problem, please contact us freely       1) We accept PayPal payment ONLY.     On Mar-11-15 at 22:15:51 PDT, seller added the following information:
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Brand nRF24L01P+PA+LNA
Type Does not apply
Model 100mW 22dBm
Color Does not apply
MPN Wireless Transmission
Material Does not apply
Country/Region of Manufacture China
UPC Does not apply

Directions
