5" Digital Portable Palm Otdr Tester 13/15db 1310nm/1550nm For Ftb-1 Max-710b

US $2000

ShenZhen.GuangDong, China
Jan 29th

Open on mobile:
QR code

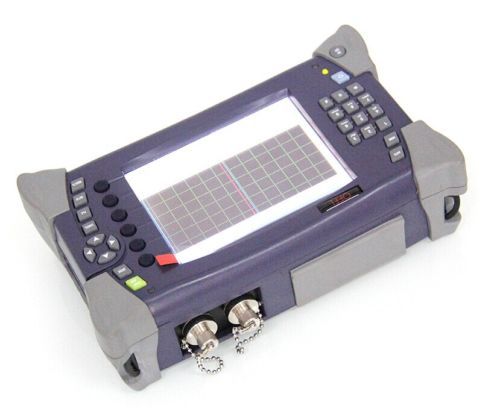

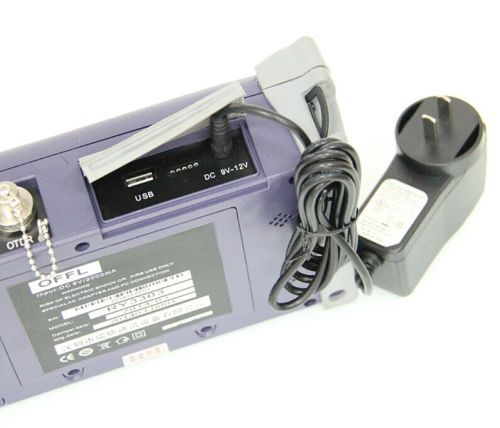

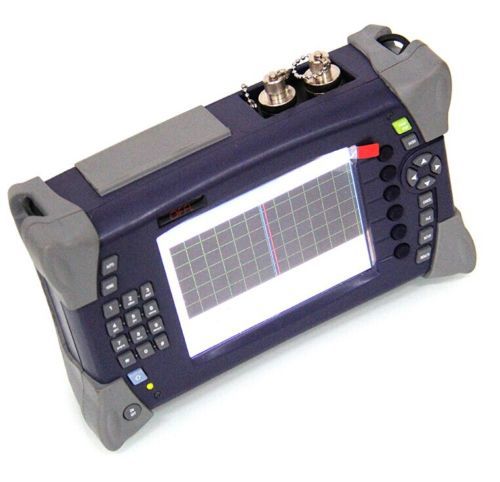

5" LCD Digital Portable Palm OTDR Tester 13/15dB 1310nm/1550nm For FTB-1 MAX-710B New Replace EXFO OTDR Tester Mester FTB-1 MAX-710B AXS-100 RY-OT2000 OTDR RY-OT2000 1310nm/1550nm Single-Mode 15/16dB Overview RUIYAN OTDR-2000 series portable optical time domain reflectometry (OTDR) is the latest FTTx optical fiber cable-based test instrument. It has light weight, elegant appearance, small size, easiness of installation and maintenance, high-capacity built-in battery. It provides multiple built-in test wavelengths and optical testing functions like visual fault locator (VFL). As a new product specially designed for FFTx network testing, it provides site technicians with the highest performance and upgrade services. Features Advanced anti-reflective LCD, display interface is clearly visible in bright light (VFL)Visual fault location function It provides high-speed USB port, waveform file conversion and printing convenience Long-lasting lithium battery, ideal for long-time outdoor construction work Online upgrade function, users do not have to go back to original factory to upgrade the system. Main functions 1. Fast automatic test Automatic test function allows the user not to have to know more details about the equipment operation, test steps become very simple. User only needs to connect in the optical fiber, click Test button, then the instrument will automatically set optimal test conditions and eventually give accurate test results, such as the test curve and event lists. 2. Fast curve analysis It can find out the event point or failure point in test curve and its location information quickly and accurately test curve, and list all event information in the circuit in the form of event list. This is very helpful for circuit maintenance personnel, not only improves the testing efficiency, but also eliminates the need to learn difficult background knowledge. 3. Powerful document management In addition to the ability to store, view, delete the files in the machine, it also provides PCL language-based laser or jet printers to print test reports. Besides, it also utilizes PC software to realize high-speed communications with PC via USB cable. 4. Convenient VFL function With visual IR VFL function, it can easily and quickly the locations of disconnecting points or big loss points in short-distance optical fibre links, so that the maintenance personnel could take measures in shortest time therefore saving a lot of time. 5. Manual test mode Users can choose real-time test mode or average test mode according to the testing needs. Real-time test can fast test the dynamic change of optical-fibre links. It is mainly used for the connecting occasions requiring monitoring or observing optical-fibre links at real time. 6. Average test mode Average test mode is used to withhold the noise in test curves to the most extent, therefore obtain more accurate testing results. In average test mode, the number of averaging tines will influence the effects of suppressing the noise in test curves. The bigger the number of time is, the effect the time is, but the testing time is to be extended accordingly. Therefore, user should set averaging time based on actual need. 7. Dead zone test mode It is suitable for the test of ultra short-distance optical fiber. Specifications Model RY-OT1000 RY-OT2000 RY-OT4000 RY-OT5000 wavelength 850nm/1300nm 1310nm/1550nm 1310nm/1550nm 1310nm/1550nm/ (1490nm option) Fiber Type Single-Mode Single-Mode Single-Mode Single-Mode Dynamic Range 22/23dB 13/15dB 32/30dB 36/35dB Measurement range (single ) 50-60KM 80-100KM 140-160KM Event dead zone 0.8m/0.1-16m Accuracy +(1m+ Sampling interval +0.003%*Distance) (excluding refractive index imbedding error) Resolution 0.1m-16m Loss Threshold 0.01dB Linearity 0.05dB/dB VFL output power 5mW Measurement range (single ) 1.6km-80km Pulse width (single mode) 10ns~1024ns Number of sampling points 65K Waveform storage capacity 1000 frames Range of refractive index 1.00000~2.00000 Range of optical-cable correction factor 0.80000~1.0000 Display Color TFT LCD, 5.1 inch, 640*480 Port USB Optical output port FC/PC Power supply AC/DC adapter: AC input: 100V~240V(1.5A) Output DC: 9V(2A) Power frequency: 50Hz~60Hz Internal lithium battery: 7.4V, 3200mAh Working hours of battery: 10 hours (normal temperature) Menu language Simplified Chinese/English Environmental requirements Storage temperature: -40oC~70oC(exclusive of battery) Relative humidity 5%-95%, no condensation Dimensions 215mm*130mm*66mm Weight About 1.5kg 1.Your valid phone number is very necessary for the shipping, otherwise we can't guarantee that the package would safely arrives. 2. Any Customs tax applied to this package should be covered by buyers. What in Package: 1 x Palm OTDR Tester new kit 1 x Bag Payment 1. Payment methods accepted : Paypal only. 2. Payment must be received within 7 business days of auction closing. Shipping 1. We ship your orders within 1-2 business days after the payment received. 2. Item shipped via Singapore Post or HongKong Post , It takes about 7-14 business days (USA,CA,AU,UK).others country 10-20 business days(Brzil,India,RU),Exact delivery time depends on postal process. 3. If you do not receive your item(s) by 30 business days,Please feel free to contact us via ebay mail system , we will try our very best to resolve any problems with you Return Policy 1. Return is accepted within 14 days after the buyer's receiving the item. 2. If this item is defective upon receipt, customer has up to 14 days from date of receipt for exchange of a new one. 3. Unused/unopened merchandise will be fully credited. Other Policies We are not responsible for any custom duty or import tax. If you need we write low price on shipping bill, pls leave message when you make payment . All emails will be answered within 24 hours. If you do not receive our reply, please kindly re-sent your email and we will reply to you as soon as possible, Suggest send eBay message to us, That is easy to find .

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	RY
Model	OTDR-2000
