Drawings Plans For Model Airplane Engine - Four Stroke Flat Head Glow Ignition

US $39.95

Hagerstown, Maryland, United States
Jan 30th

Open on mobile:
QR code

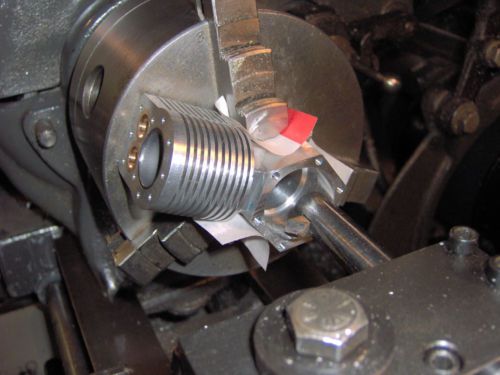

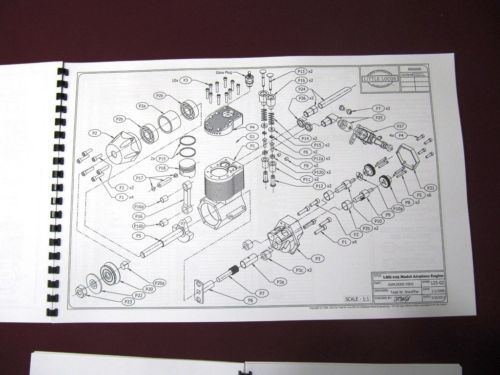

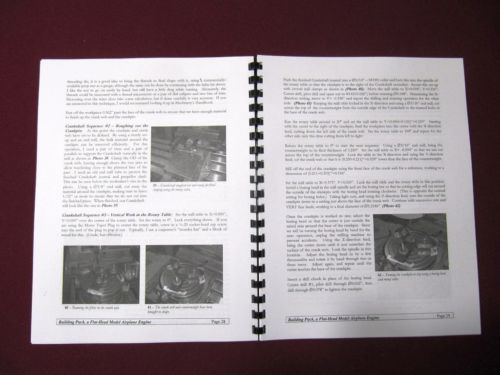

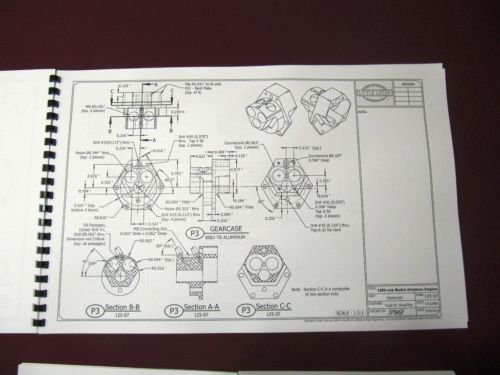

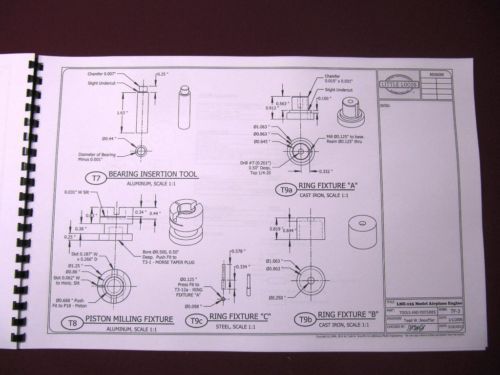

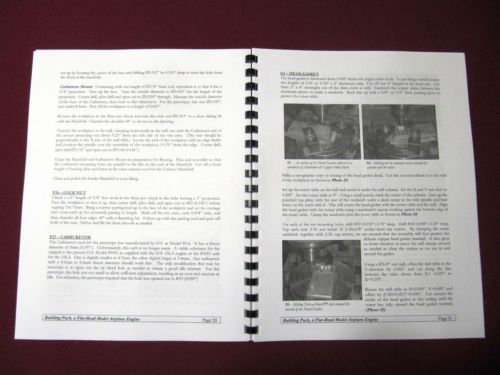

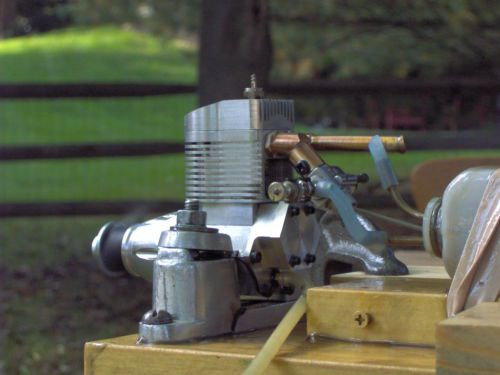

LITTLELOCOS MODEL ENGINEERING is proud to present the LME-125 "Puck" Engine Project Plans Set for a 4-stroke, Flat-Head Model Airplane Engine This beautiful PLANS SET includes 19 pages of detailed engine Drawings, 4 pages of fixture drawings, plus a 57 Page Instruction Manual with detailed machining instructions illustrated with B&W photographs. Plans also include a detailed parts listing with stock sizes for all fabricated parts and suppliers for all purchased parts. This is easily one of the most complete PLANS SETS on the market. The set is printed on 11x17 paper and comb bound. The drawings were produced by a professional engineeer and draftsman in 3D CAD -- each part is detailed with both two-dimensional views as well as a three-dimensional isometric rendering. A detailed, exploded view aids with part identification and assembly of the engine, making the set very easy to read and to use. PLEASE NOTE: The drawing set offered here includes drawings and instructions only. The engine is designed for construction by the home shop machinist or model engineer interested in building and running his own model airplane engine. Equipment required for construction of this engine include a metal lathe, milling machine, and a horizontal/vertical rotary table with indexing plates. The prototype was constructed on an Atlas 10" metal lathe and Grizzly Mill-Drill. Should you have any questions, please e-mail us. PROJECT CONCEPT: Puck is a modern twist on an old idea. Using a flat-head, valve-in-block design, coupled with a high-compression head and modern valve timing, we have produced a very unique engine which is both beautiful to look at AND a good performer. The prototype engine is capable of 10,500rpm turning a 8x4 prop and weighs in at 10.5 oz. Puck is also our answer to requests for an engine simpler and easier to machine than our first engine offering -- the LME-370 "Pip" 3-cylinder Radial Engine. It has far fewer parts and does not require any odd angles or complicated machining set-ups. SPECIFICATIONS: Bore - 0.680", Stroke - 0.750", Displacement - 0.27ci, Fuel 15% Nitro Glow Fuel, Ignition - Glow Plug. The prototype weighs in at 10.5 oz and turns an 8x4 prop at up to 10,500 rpm, idling down to about 3,000. The carburetor, springs, and ball bearings are commercially available (supplier information is included in the set). All other parts are machined from solid -- NO CASTINGS ARE NEEDED. SHIPPING: Drawings and Instructions are comb-bound, and rolled, shipped in a heavy cardboard mailer. Domestic shipments are via USPS Priority Mail with Delivery Confirmation. Shipping and Handling for Domestic shipping are calculated by eBay based on your location. International shipments are via USPS First Class Mail International (Air Mail). Shipping and Handling for International shipments are calculated by eBay based on your location. We ship once per week, usually on Saturday. PAYMENT: Paypal only. Be sure to check out the Super-Size Pictures below. Please note that the plans are printed in black and white. Thank you for considering our engine project for your home shop. Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items. Froo www.froo.com | Froo Cross Sell, Free Cross Sell, Cross promote, eBay Marketing, eBay listing Apps, eBay Apps, eBay Application

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Country/Region of Manufacture	United States
Brand	Littlelocos Model Engineering
