Drawings Plans For Radial Engine, Glow Ignition Model Airplane Engine

US $39.95

Hagerstown, Maryland, United States
Jan 30th

Open on mobile:
QR code

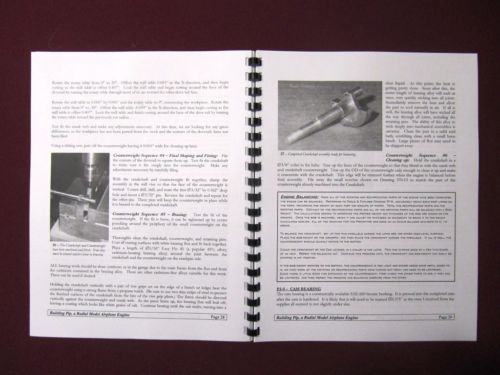

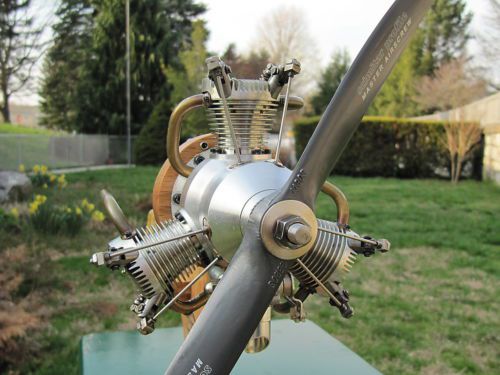

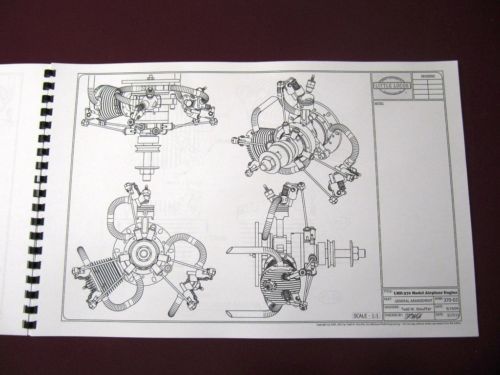

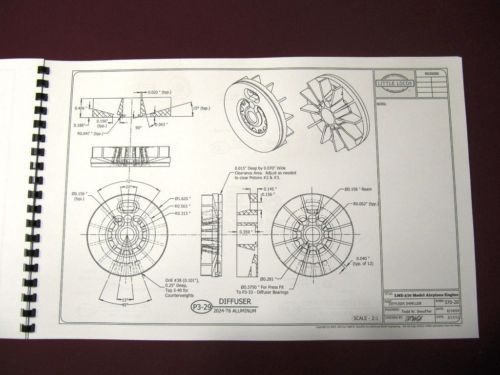

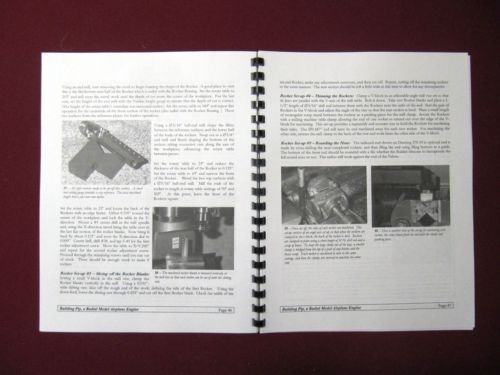

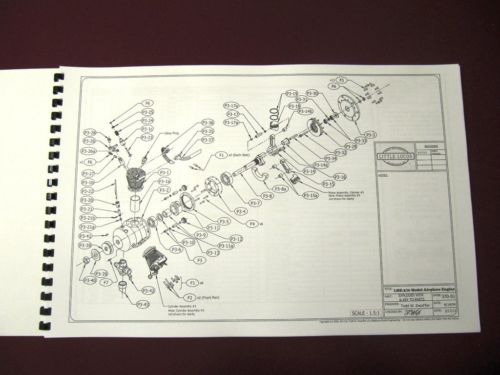

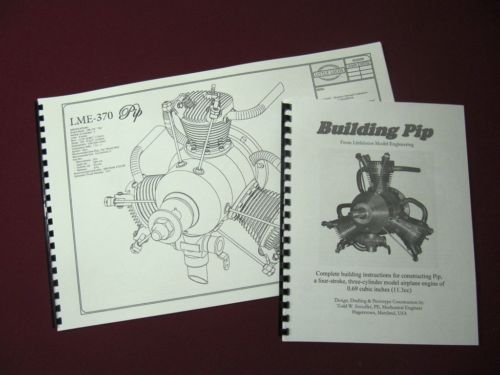

LITTLELOCOS MODEL ENGINEERING is proud to present the LME-370 "Pip" Engine Project Plans Set for a 3-cylinder Radial Engine for Model Aircraft use This beautiful PLANS SET includes 24 pages of detailed engine Drawings, 5 pages of fixture drawings, 59 Pages of detailed machining instructions, plus a two-page parts listing including stock sizes for all fabricated parts and suppliers for all purchased parts. This is easily one of the most complete PLANS SETS on the market. The set is printed on 11x17 paper and comb bound, complete with cover-stock end pages. The drawings are have been produced by a professional draftsman using a CAD design package -- each part is detailed with both two-dimensional views as well as a three-dimensional isometric rendering. A detailed, exploded view aids with part identification and assembly of the engine, making the set very easy to read and to use. PLEASE NOTE: The drawing set offered here includes drawings and instructions only. The engine is designed for construction by the home shop machinist or model engineer interested in building and running his own model airplane engine. Equipment required for construction of this engine include a metal lathe, milling machine, and a horizontal/vertical rotary table with indexing plates. The prototype was constructed on an Atlas 10" metal lathe, and Grizzly Mill-Drill. Should you have any questions, please let us know. PROJECT CONCEPT: Pip's design features crankcase induction -- the fuel-air mixture passes through the crankcase, wetting all internal parts. A centrifugal blower (diffuser) is housed in the rear section -- keeping crankcase internal pressures negative -- and intake pressures positive. A planetary gear set is used to run the cam directly on the crankshaft. Glow ignition dispenses with complicated spark ignition sets. SPECIFICATIONS: Bore - 11/16", Stroke - 5/8", Displacement - 0.69ci, Fuel 15% Nitro Glow Fuel, Ignition - Glow Plug. The prototype weighs in at 28 oz and turns a 12-6 prop at up to 8,500 rpm, idling down to 2,000. The carburetor, springs, and most bearings are commercially available (supplier information is included in the set). All other parts are machined from solid -- NO CASTINGS ARE NEEDED. VIDEO of the Prototype Running - THE ENGINE IS NOT FOR SALE, ONLY DRAWINGS AND INSTRUCTIONS http://youtu.be/zyelFqb7HW0 SHIPPING: Drawings and Instructions are comb-bound, and rolled, shipped in a heavy cardboard mailer. Domestic shipments are via USPS Priority Mail with Delivery Confirmation. Shipping and Handling for Domestic shipping are calculated by eBay based on your location. International shipments are via USPS First Class Mail International (Air Mail). Shipping and Handling for International shipments are calculated by eBay based on your location. We ship once per week, usually on Saturday. PAYMENT: PayPal only. Be sure to check out the Super-Size Pictures below. Thank you for considering our engine project. Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items. Froo www.froo.com | Froo Cross Sell, Free Cross Sell, Cross promote, eBay Marketing, eBay listing Apps, eBay Apps, eBay Application

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Country/Region of Manufacture	United States
Brand	Littlelocos Model Engineering
