Vickie Victorian Stirling Cycle Engine Plans

US $23.00

Hollansburg, Ohio, United States
Jan 30th

Open on mobile:
QR code

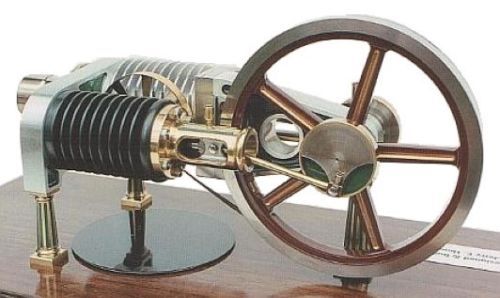

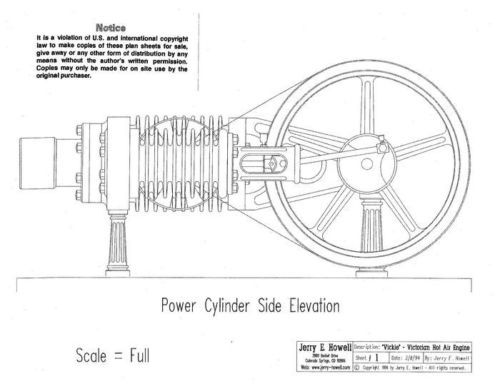

Plans to build the Vickie Victorian Stirling Cycle Engine Stirling engines have no valves, carburetor, ignition system or boilers and they run almost ghostly silent. Properly made, they will run flawlessly every time a source of heat is applied! "Vickie" is a stirling cycle engine of modified Heinrici type with elegant Victorian styling designed for pleasing looks as was applied to 18th and 19th century engines and machines. Three fluted columnar legs and two stylish crossheads of differing style blend perfectly with the curved and angular lines of the engine frames. The engine is primarily made of aluminum with accents of polished brass and stainless steel and trimmed in dark green and maroon paint. A belt driven brass cooling fan competes with the rod and crosshead action for attention. Vickie is powered by an attractive horizontal brass alcohol burner which sports an integral fuel level sight glass. Vickie is considered by many to be one of the most beautiful stirling engines ever designed. I hope that you'll agree too! She is a true heirloom engine which will surely be handed down from generation to generation. The plans set consists of 16 sheets of drawings and 3 sheets of construction and assembly notes. Specifications: Flywheel Dia.: 4-5/8", Cylinder Bore: .600, Piston Stroke: 1", Overall Length: 10" All of our plans projects are machined from metal bar stock (supplied by you, the builder) and no castings are required. This is the lowest cost way for you to build as the metals can usually be purchased from metal salvage yards for around $2.00 or so per pound for aluminum, brass and stainless steel. But as can be seen, most of the model engines are designed to look like they were in fact made from castings instead of rectangular blocks and round bars of metal. Please note - we do not have any ready to run engines or bolt together engine kits for sale. The plans are for model engines - the engines can be scaled to any size, but no claims of suitability for practical power generation are made. The Plans Set drawings are high quality computer generated drawings using a professional CAD (Computer Aided Design) program and printed on 8-1/2" x 11" sheets with a laser printer. This permits you to insert them in plastic sheet protectors so they won't get soiled as you use them in the shop. Dimensions are in U.S. inch decimals - no fractions - which makes it easy for you to change the scale of your model to suit your machine tool capacity or the materials you have on hand or have access to. Multiply dimensions by 25.4 to obtain millimeter dimensions.

Condition	New other (see details) : A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“This is for PLANS to build the engine, not the actual engine.”
