Hamamatsu 2" R10131 Pmt Photomultiplier Tube Wired With Vd, Cap & Bnc Connector

US $110.00

Stuart, Florida, United States
Jan 30th

Open on mobile:
QR code

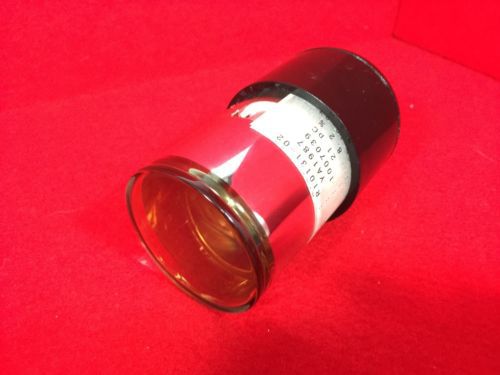

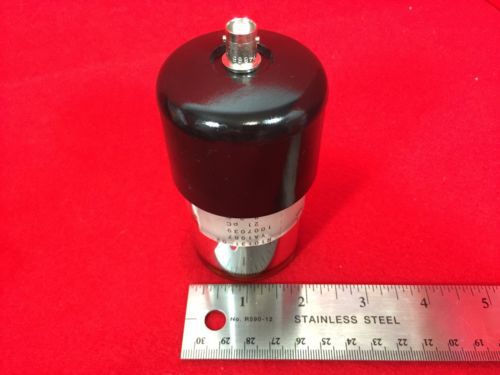

Super nice 2" Hamamatsu R10131 PMT Photomultiplier Tube. This listing is for a PMT with the original Hamamatsu Voltage divider network replaced by a voltage divider for more common use in stand alone scintillator detectors. I then add a Cap and BNC connector so that it is ready to use with a scintillator crystal of your choice. These PMTs make an excellent detector for use with Ludlum meters, Gamma Spectacular HV Bias Drivers, and Theremino PMT adapter. They work great with plastic scintillators, but they are high resolution PMTs, so combining with a spectrometry quality scintillator crystal will provide a great detector for gamma spectrometry use. Also included is a BNC Connector and enough coupling grease to make several PMT to scintillator couplings. The 2" R10131 and the 3" R10133 are excellent for building a more compact (shorter) detector. These tubes are very similar to the high performance 2" Hamamatsu R6231 I sell, but in a more compact low-profile format. They do require slightly more HV voltage than the R6231, but work very well at a range of voltages between 800 and 1400 volts. Ships with the Hamamatsu Data Sheet. In other listings to follow, I sell these PMTs with the original Hamamatsu voltage divider and also in a Kit that includes all the electronics, coupling grease, and a BNC connector. This PMT is fully wired and tested for immediate use in your own custom build scintillator detector. Upon request, I can ship your PMT with a ground wire protruding from the edge of the cap for connection to Mu-Metal shielding. Need a different connector? Just ask before purchase. The R10133 is a 2 inch (50mm) diameter, Head-on type, Bialkali photocathode. The maximum spectral response is 300 to 650 nm, peaking near 450nm, originally designed for NaI or plastic scintillator based gamma cameras. Once modified, these PMTs are great for Scintillation Counting and an excellent choice for Gamma Spectrometry, with a low profile and High PHR. They are driven easily by voltages starting around 800 volts, and normal operating voltage is 850 to 1100 volts (Maximum recommended 1500 volts). These are NOT the typical 20 to even 50 year old tubes often found on eBay (usually sold with no guarantee of operation, from sellers who would not know how to test one in the first place). This listing is for a modern high performance high quality PMT, one that normally sells for hundreds of dollars when purchased new. Each tube leaves my lab tested and guaranteed to satisfy. If you need more than the quantity eBay says is available, contact me for a special listing and price. I ship very fast, same day if early enough, next day otherwise (except Holidays and Weekends). This item will be packed safe and secure. Only shipped to a PayPal Confirmed Address. Thanks for looking. Please don't forget to check my feedback and see my other items.

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“Used 2" PMT in guaranteed and tested working condition from a trusted source.”
