Hoffmann Mu2-p Pneu. Bench-top Machine With Custom Table

US $2,200.00

South San Francisco, California, United States
Jan 30th

Open on mobile:
QR code

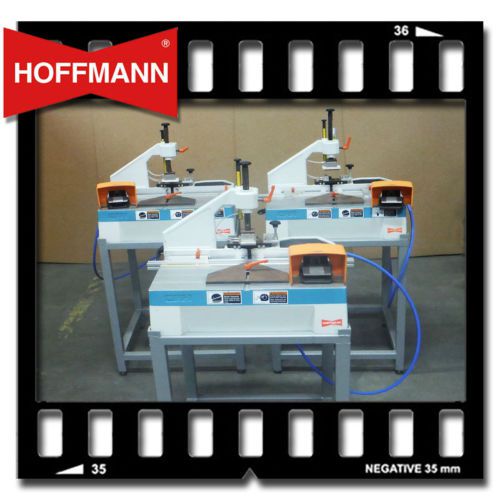

HOFFMANN, MU2-P-PNEU We have three: Hoffmann MU2-P Pneu. Bench-Top Machines available. cost from Hoffmann is: $3,630.00 FOB New York. These MU2-P Pneu Machines were purchased for use on one project, all units have custom steel tables and were in service for three month. All units are like new. Please call Mike with any questions or offers: 650-280-1472. OPERATION The keyway location is adjusted by positioning the guided center fence plate on the machine table. Pressing the pneumatic foot pedal activate the machining cycle: pneumatic clamp secures workpiece on machine table router head advances until the pre-set height position is reached router head returns to base position pneumatic clamp releases work piece Output is approx. 16 routing strokes per minute, which translates into 2 completely processed rectangular frames. These numbers include material handling, but obviously depend on routing depth, feed speed, material flow and operator performance as well. Flow control valves on the main pneumatic cylinder allow the operator to adjust the upward and downward feed rate independently, depending on the material being processed. On its backside, the large heavy-duty cast aluminum machine base has a 1 3/4" diameter dust collection port to connect a shop vacuum for dust free operation. The supplied router bit is solid tungsten carbide, made to exacting specifications. Depending on the routing depth and the material to be routed, the useable cutter life is approx. 10,000 strokes. Every machine is shipped with a tool kit and set-up jig, which allows a router, bit change in only minutes. Diamond tooling is also available. Standard Features Hoffmann Dovetail Routing Machine, model MU2-P, ready for operation, with air regulator, air filter, and oil lubricator assembly, W-2 carbide router bit, standard 45 degree fence plate and square stop installed. Also includes toolkit and manual. TECHNICAL DATA Power Supply: 120 Volts / 6.3 Amps. Motor: 750 Watt Motor Speed: 35,000 RPM Collet Size: 1/4" Air Supply: 90 PSI - 6 Bar Max.Routing Height: 3" Max. Material Height: 6" Installed Router Bit: W-2, Solid CarbideAvailable Router BitsW-1, W-2, W-3, W-4 Dimensions: 26 3/4" x 23 5/8" x 19 5/8 Weight: 71 Lbs.

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Hoffmann MU2-P Pneu. Bench-Top Machine
MPN	Hoffmann MU2-P Pneu. Bench-Top Machine
Model	Hoffmann MU2-P Pneu. Bench-Top Machine
Country/Region of Manufacture	Germany
