Inno Ifs-15h Fusion Splicer & Odm Otr 700-q Sm And Mm Otdr 850, 1300, 1310, 1550

US $12,500.00

Phoenix, Arizona, United States
Jan 29th

Open on mobile:
QR code

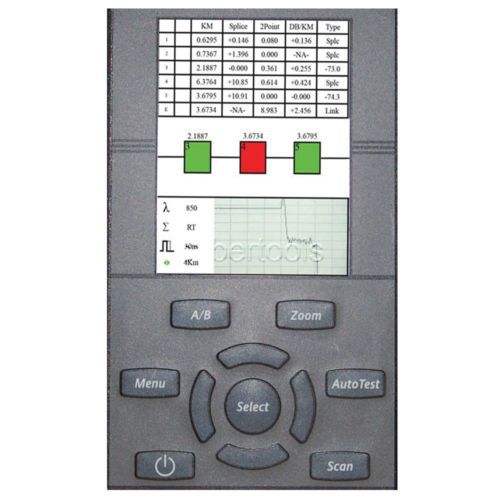

eFiberTools Product ID: Item may require 7 to 14 days lead time. Includes: splicer, cleaver, cooling tray, indoor stripper, protector, battery, cooling tray, power cable, AC adapter, electrodes, CD, working table, carrying case, car charger cable and bonus fiber optic cleaning supplies kit and OTDR OTR 700-Q. Check out the hottest new splicer from INNO Instrument, the IFS-15H Fusion Splicer. This core alignment arc fusion splicer is specialized to work with the fiber cables most commonly found in FTTx applications: 250µm fiber, 900µm fiber, flat cable, fiber jumper and splice-on connectors. We have bundled together a New Inno IFS-15H Fusion Splicer with a New ODM OTR 700-Q Single-mode/Multi-mode OTDR for a great discounted price. Great for beginner, novice and expert splicers. Manufacturer Description The ODM OTR 700 give test technicians and contractors all the tools necessary for testing optical reflection and loss in fiber networks. The optional video scope (not included) allows for extensive options in endface inspection, ensuring industry acceptable optical connections. The units come in quad wavelength configurations, making the OTR 700 the perfect option for both single mode and multimode installations. Power Meter and/or Light Source are optional with all OTR 700 units (not included). With these add-ons, technicians can test for dB loss in trunk and sector fibers to confirm that each fiber is functioning correctly. The OTRs offer an event table with PASS/FAIL analysis for each reflective event, and the 1 meter dead zone provides accurate reflective event testing in all fiber systems. Each event can be inspected manually using the event selection feature or automatically with the device’s built-in pass/fail function. The OTR 700’s schematic trace view allows technicians to see just the most important parts of each trace with pertinent data attached. With ODM’s OpTrace app for smartphones and tablets, users can control their OTR device, view/save test results, and save data wirelessly via Bluetooth. While the OTRs boast a color screen (4” touch-screen for OTR 700) and allow for up to 1,000 trace saves, screen size and save capacity are limited only by your smartphone or tablet when connected via Bluetooth. Splicer The IFS-15H core-alignment fusion splicer with the new (DACAS) Digital Analysis Core Alignment System is one of the most dependable splicers on the market. The IFS-15H has a user friendly, intuitive GUI (Graphical User Interface) with a 4.3 inch high-resolution color LCD screen that is easy to see and use. With the compact size of the fusion splicer (155mm*130mm*137mm) and the portable carrying case, the IFS-15H FTTH Master provides an adaptable and convenient package to FTTx field technicians. More impressive than the compact size is the significant innovation in compatibility. The IFS-15H is compatible with the most widely used fibers and cables, including splice-on connectors. It combines the functions of both splicing and heating for those cables which are popular in FTTH: 250µm fiber, 900µm fiber, flat cable, fiber jumper and splice-on connector. IFS-15H Fusion Splicer Weight 1.82kg without battery Applicable Fibers SM(ITU-TG.652)/MM(ITU-TG.651)/DS(ITU-TG.653)/NZDS(ITU-TG.655)/ITU-TG.657A/ITU-TG.657B Compatible Fiber/Cable 0.25mm/0.9mm/2.0mm/2.4mm/3.0mm/ Flat cable Fiber Count Single Core Fiber Holder Detachable (Standard: FH-40, Optional: FH-10, FH-ST, FH-SC) Fiber Diameter Cladding:80-150µm/Coating:100-1000µm Fiber Cleave Length Diameter 250µm-1000µm: cleave length 8-16mm Splice Mode Max/Preset 64/24 Typical Splice Loss SM:0.02dB/MM:0.01dB/DS:0.04dB/NZDS:0.04dB/G.657:0.02dB (ITU-T Standard) Return Loss >>60dB Splicing Time SM Quick Mode: 7 seconds Estimated Splice Loss Available Attenuation Splicing 0.1dB-20dB (0.1dB step) Heat Oven/Heating Time Heat Mode: 32/Heating Time (Typical): 35 second Applicable Protection Sleeve Length 10mm, 20mm, 30mm, 40mm, 50mm, 60mm Results Storage The last 2000 results Mechanical Proof Test 1.96~2.25N [Based on the fiber count] Operating Condition Operating Altitude:0-5000meter above sea level, 95% relative humidity, - 10~50°C, Max Wind 15m/s Storage Condition 0~95% relative humidity, -40~80°C, Battery: -20~ 30 °C Size/ Color 155*130*137(L*W*H)/ Eco-green Display 2 Cameras and 4.3 inch color LCD monitor (with high resolution and shock-proof protect surface) Fiber View & Magnification X/Y 300x, XY 180x Power DC 18V Power Supply No of splice/Heating with Battery Typical 160 times(Splice + Heat) / Splice + Heat=26.7mA/per time Battery:4200mAh Electrode 2500 Times Splicing Terminal USB 2.0/RS232 (for storage and upgrading) Other Functions IFS-15H Exclusive Software /Exclusive Heat Oven-for splice-on connector/Splice and Heat mode for connectors OTR 700-Q Wavelength 850nm, 1300nm, 1310nm, 1550nm, +-20nm Dynamic Range 27/26dB MM, 36/35dB SM Pulse Width 5 - 20,000 ns Units of Measurement km, kf, mi Event Dead Zone 1m Attenuation Dead Zone 4m Resolution 0.125-32m Distance Uncertainty +-(0.75 + 0.005% x distance + sampling resolution) Full Scale Distance Range 1-64km MM, 1-240km SM Typical Real-Time Refresh Rate 2 Hz Group Index of Refraction (GIR) 1.024 - 2.048 Linearity +- .05 dB/dB Memory Capacity 1,000 traces Memory Type Internal Power Supply/Charger Universal Battery 6hr Storage Temperature -20 to 60 C Operating Temperature Range -10 to 50 C Dimensions (w/out rubber boot) 7.75” L x 4.5” W x 2.25” H (197mm L x 114mm W x 57mm H) Weight 2.0 lbs. Communications ports USB/Bluetooth Connector Styles FC, ST, SC Interchangeable Fiber Optic Tools & Supplies BUY | SELL | TRADE Mail/Shipping Address: eFiberTools 329 W. Melinda Lane Phoenix AZ 85027, U.S.A. Phone: Toll-Free: (623) 582-5560 (877) 773-3423 Business Hours: 8:00 am - 4:00 pm (AZ time) Monday to Friday Email: ebay@efibertools.com PAYMENT OPTIONS Credit/Debit Cards are accepted for USA and Canadian eBay transactions pursuant to our eBay Sales Policy*. Cards accepted: Visa, MasterCard, Discover Card, and American Express. We may require shipping to the card holder's billing address and signed CC Authorization form. PayPal is always accepted for USA and Canadian transactions when shipping to a PayPal Confirned address. Shipping to a PayPal verified address may be required. Authorization for PayPal acceptance when the item is being shipped to outside of the U.S.A. at our discretion. Contact us with questions. Bank Wire Transfers are accepted for amounts over $200. This is the preferred payment optiosn for international customers, dropship, and high-value items. Check and Money Orders are accepted, at our discretion, and may require a wait time before shipping item. Use the shipping quote calculator supplied by eBay, or contact us for a shipping or freight quotes. Do not hesitate to contact us directly if you feel the shipping calculated using the eBay quote calculator is excessive. We generally do not ship on the buyer's shipping account, except in unusual circumstances. Contact us prior to bidding if you wish to use your account. Most items ship using UPS. USPS may be used upon request. Most items are shipping within one business day unless otherwise indicated. We will help you to find the lowest, reliable rates for any pallet or crate shipments, and you may use your own freight carrier with no additional costs except typically a palletizing charge. If an item appears to be damaged due to shipping, PLEASE SAVE ALL PACKAGING MATERIAL and contact customer service immediately. International We use UPS for international shipments. In some exceptional instances we may us USPS. If the eBay site's shipping quote calculator total seems excessive then we encourage you to contact us immediately. Box size of each item is specified in our database and some international shipping quotes can be reduced by finding a more accurate box size. Domestic We use UPS with most packages, or USPS for some small packages. All items shipped by UPS include insurance. Items exceeding 150lbs, or larger than UPS allows must be shipped by freight using a pallet or crate and must quoted manually. Contact us prior to bidding for freight shipping quotes. Local Pickup You are welcome to pick up your purchase during normal business hours M-F, 8am to 4pm.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Inno Instrument
Fusion Splicer Options	Stripper and more
Model	IFS-15H
Splicing Capabilities	Core Alignment
Item Application	Fiber Optic Cable OTDR
Splicer Power Required	AC 100-240V
Wavelength	850, 1300, 1310, 1550 nm
Manufacturer	ODM
Equipment Class	Battery
