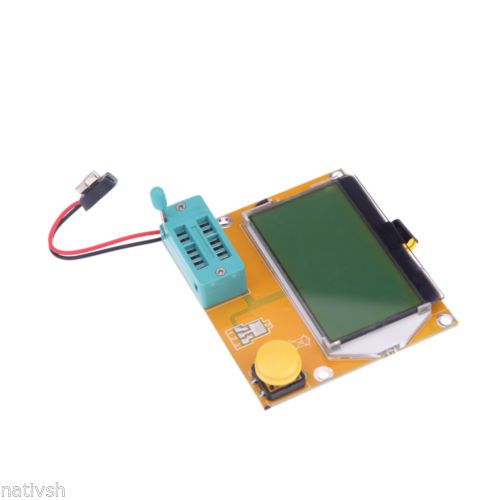

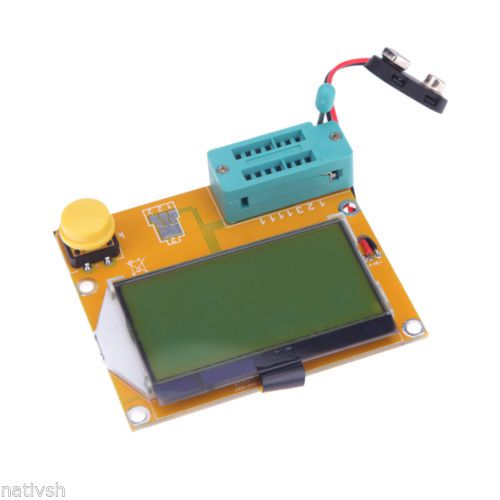

Mini Lcr-t4 Graphical Transistor Tester For Resistance Triode Diode Esr Scr

US $13.94

Shen Zhen, China
Apr 27th

Open on mobile:
QR code

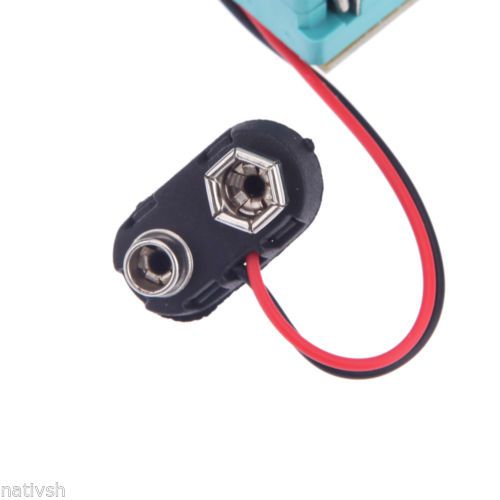

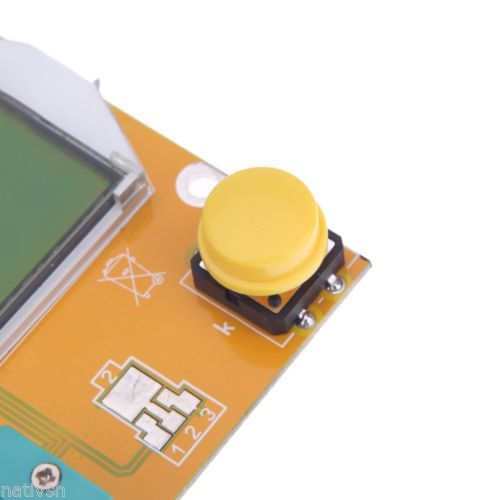

Mini LCR-T4 Graphical Transistor Tester for Resistance Triode Diode ESR SCR Features: Powered by 9V layer-built battery, can use 2 li-ion batteries to form a 8.4V battery pack for long time power. Measuring bipolar transistor current amplification factor and base-emitter threshold voltage. Automatic test the pin of a component, and display on the 128 * 64 LCD backlight. Measure the gate and gate capacitance of the MOSFET threshold voltage. One -button operation, automatic shutdown, only 20nA shutdown current. Eeverse breakdown voltage is less than 4.5V, Zener diode can be identified. 2uF more capacitors can simultaneously measure the equivalent series resistance ESR values. Via the base - emitter threshold voltage and high current amplification factor to identify Darlington transistors. Can simultaneously measure two resistors and resistor symbol is displayed. Displayed on the right with a decimal value of 4. Can detect the transistor, MOSFET protection diode amplification coefficient and the base to determine the emitter transistor forward biased voltage. Automatic detection of NPN and PNP transistors, n-channel and p-channel MOSFET, diode (including double diode), thyristor, transistor, resistor and capacitor and other components. Specifications: Material: PCB Power Mode: 6F22 Display: 128 * 64 LCD backlight Testing Speed: 2 seconds (1 minute is normal for large capacitor) Shutdown Current: 20nA Displayed Value: 25pf-100mF (resolution 1pF) Inductance: 0.01mH-20H Resistance: ≤2100? Power Volatge: 9V layer-built battery / 2 li-ion batteries to form a 8.4V battery pack Resolution of Resistance Measurement: 0.1 ohms The Highest Measured Value: 50M ohms Provided Testing Current: Approx. 6mA Product Size: 7 * 6.3cm / 2.76 * 2.48in (L * W) Product Weight: 44g / 1.55oz Package Size: 8 * 8 * 2cm / 3.15 * 3.15 * 0.79in (L * W * H) Package Weight: 45g / 1.58oz Package List:H11886 1 * ESR Meter Transistor Tester

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Inductance	0.01mH-20H
Power Mode	6F22
Material	PCB
