Nanomp07 Wireless Communications Hub Controller For Rf24l01

US $29.95

North Vancouver, British Columbia, Canada
Feb 13th

Open on mobile:
QR code

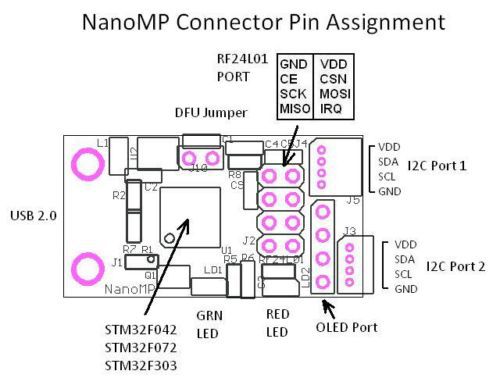

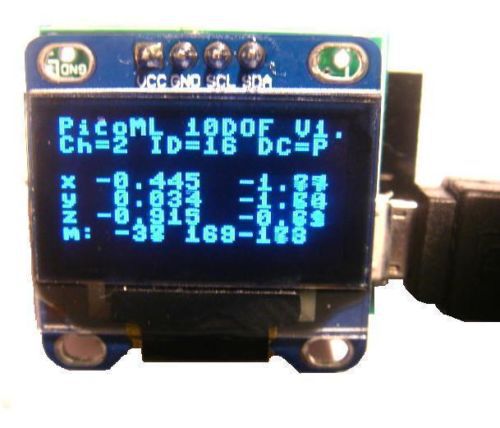

Overview The NanoMP07 is a Wireless Hub Communications controller designed to connect a RF24L01 RF module to the desktop. The onboard processor is an STM32F072 running at 48MHz. The NanoMP07 has a connector port for an RF24L01 wireless module, two I2C ports and a connector for an OLED 128x64 display. See the NanoMP datasheet for more information. The NanoMP07 provides the wireless communication link between Pico wireless sensor nodes and the desktop. A Desktop GUI (SOCSense) is available that communicates with the NanoMP07 via the USB. SOCSense is designed to handle multiple Pico IMU's in a star wireless configuration. The STM32F072 can be reprogrammed by installing a jumper on the DFU boot0 header. The application running on the NanoMP07 was written using the open source CooCox IDE and complete source code can be downloaded from our web site. Download NanoMP Technical Brief (pdf) Nano Family Technical Overview (pdf) for more information on the Nano product family. Pico Family Technical Overview (pdf) for more information on the Pico product family. Differences Between Pico, Nano and Femto Sensor Nodes (pdf) for a description of the differences between SOC Sense modules. Features STM32F072 processor On chip DFU boot loader for software field upgrade SPI interface connector for RF2401 Wireless module Both I2C ports brought to connectors Connector for OLED 128x64 display Plug directly into PC or laptop Real time data acquisition application communicating wirelessly with Pico sensors using RF24L01 module Application source code provided Software application developed with CooCox IDE Optional Components Two optional display modules are available that directly attach to the NanoMP07. Check for pricing or purchase directly from third parties. OLED 128x64 display: OLED1 A wireless modules are available that attach to the NanoMP07 - the RF24L01. This module is not included or supplied but are available from third parties. Warranty The NanoMP07 comes with a 60 day warranty and a 7 day return policy. If not completely satisfied simply return the unit in the original packaging for a full refund (less shipping charges). BC customers will be charged 12% (PST+GST) and Canadian customers in other provinces will be charged either 5% GST. This is a new unit direct from the manufacturer and includes warranty and technical support. Note the lithium battery, OLED and TFT displays shown in the pictures are not included in the auction. After purchasing, pay instantly with your credit card through PayPal!

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...

Country/Region of Manufacture

Canada
