New 16" Thomson Ms33lcb-l400 Microstage Linear Motion Actuator Nema23 - Thk Cnc

US $385.00

Demopolis, Alabama, United States
Jan 29th

Open on mobile:
QR code

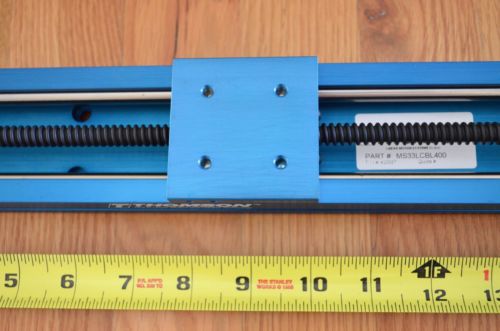

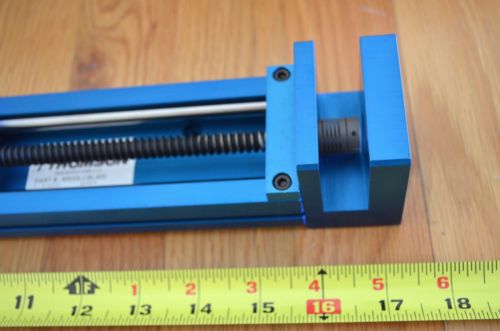

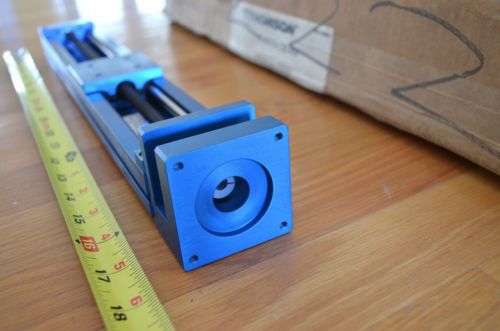

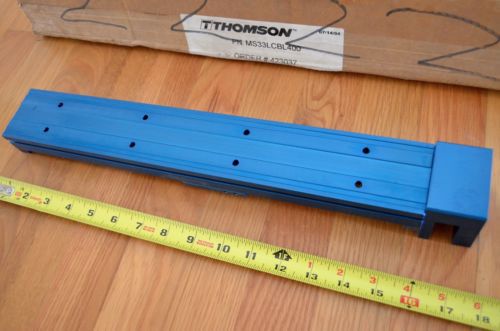

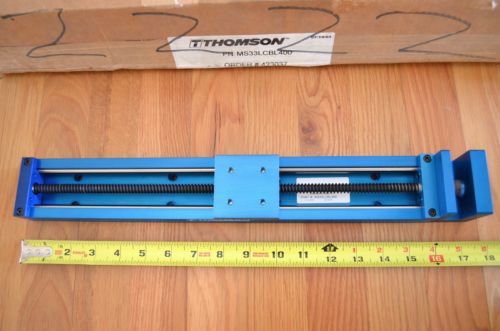

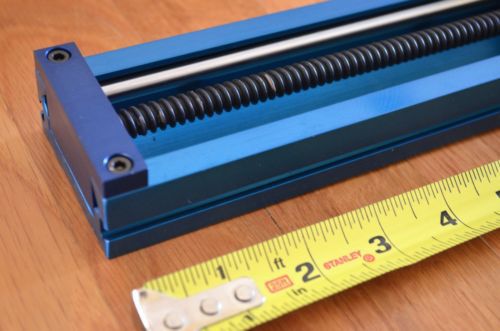

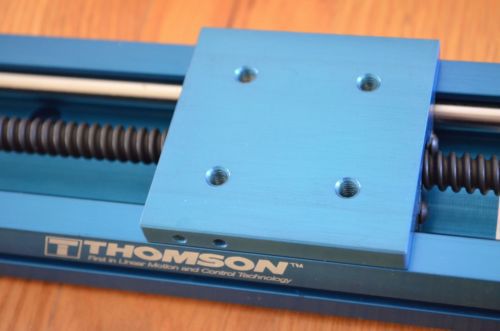

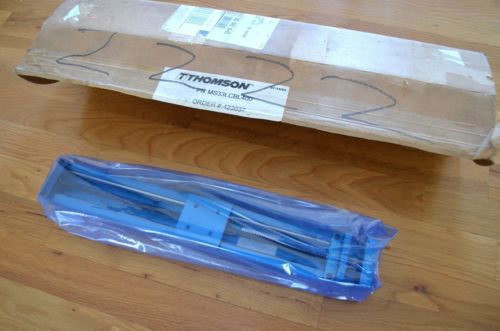

New Thomson MS33 MicroStage Linear Motion System Actuator Part# MS33LCB-L400 (400mm Length) Nema23 Motor Mount, Zero-Backlash Motor Coupler, 310mm Max Travel (12.20"), 3/8" Dia. Leadscrew x 1/8" Pitch (8 tpi) Brand New, Still in Original Packaging This is a brand new Thomson MS33 MicroStage linear motion system actuator that is still in the original box. The length of the actuator (not including the motor mount riser) is 400mm. The motor mount is a size nema23, and a zero-backlash coupler with a 1/4" dia. bore (will work with nema23 motor with 1/4" shaft). Carriage measures 60mm x 60mm with approx. 310mm travel. Overall dimensions are: 440mm x 60mm x 33mm From Thomson's website: MS (MicroStage®) Linear Units Thomson's MicroStage MS ultra compact linear slide tables are among the most compact and lightweight ball guided systems on the market today. The guide's design is based off Thomson's Super Ball Bushing® technology and is ideal for automation in cramped areas. MS Specifications: Specifications / Shaft Size MS25 MS33 MS46L Profile size (w x h): mm (in) 50 x 25 (2.0 x 1.0) 60 x 33 (2.4 x 1.3) 86 x 46 (3.4 x 1.8) Type of screw lead screw lead screw lead screw Max Stroke Length: mm (in) 705.5 (27.8) 704 (27.7) 821.3 (32.3) Max Linear Speed: m/s (in/s) 0.85 (33.5) 1.02 (40.2) 0.83 (32.7) Max Acceleration: m/s2 (in/s2) 9.8 (386) 9.8 (386) 9.8 (386) Repeatability: ± mm (in) 0.005 (0.0002) 0.005 (0.0002) 0.005 (0.0002) Accuracy: mm/300mm (in/12in) 0.2 (0.008) 0.2 (0.008) 0.25 (0.010) Max Input Speed: rpm 2000 2000 2000 Temperature Range: °C (°F) -20 to 80 (-4 to 176) -20 to 80 (-4 to 176) -20 to 80 (-4 to 176) Max Dynamic Load Fx: N (lbf) 17.8 (4.0) 80.1 (18.0) 133.4 (29.9) Max Dynamic Load Fy: N (lbf) 100 (22.5) 150 (33.7) 450 (101.2) Max Dynamic Load Fz: N (lbf) 100 (22.5) 150 (33.7) 450 (101.2) Max Dynamic Load Torque (Mx): Nm (lbf-in) 1.4 (12.4) 2.8 (24.8) 13.9 (123) Max Dynamic Load Torque (My): Nm (lbf-in) 1.3 (11.5) 2.5 (22.4) 11.6 (102.7) Max Dynamic Load Torque (Mz): Nm (lbf-in) 2.7 (23.9) 5.1 (45.1) 23.6 (208.9 Max Drive Shaft Force: N (lbf) 222 (49.9) 222 (49.9) 533 (119.8) Max Drive Shaft Torque: Nm (lbf-in) 0.08 (0.71) 0.43 (3.81) 0.59 (5.22) Lead screw diameter: mm (in) 6.35 (0.25) 9.53 (0.38) 12 (0.47) Lead screw lead: inch leads (in) metric leads (mm) 0.025, 0.05, 0.062, 0.2 ,0.25, 0.5, 1.0, 1.5, 2.3 1.5, 2, 3 0.0625, 0.1, 0.125, 0.2, 0.375, 0.5, 1.0, 1.2 2 3, 10, 25 Weight: kg (lb) unit with zero stroke every 100 mm of stroke each carriage 0.47 (1.04) 0.18 (0.40) 0.07 (0.15) 0.69 (1.52) 0.31 (0.68) 0.12 (0.27) 2.21 (4.87) 0.65 (1.43) 0.30 (0.66) See Thomson website for more info: http://www.thomsonlinear.com/website/com/eng/products/positioning_slides_linear_units/bsdbg_ms.php http://resources.minarik.com/resources/thomson/catalog/2AB-08-ARB-F.pdf Shipping rate applies to lower 48 States only. International orders will be shipped via Ebay's 'Global Shipping Program' , please click on the 'Shipping and Payments' tab above and select your country from the drop-down menu to get a shipping quote from Ebay. If your country is not listed then please contact me for a shipping quote before placing a bid.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Thomson Industries Inc. , Thomson Linear
MPN	MS33LCB-L400
Model	MS33
Country of Manufacture	United States
