New 48" Thomson 2db16 Super-slide Linear Ballscrew Actuator Nema34 - Thk Cnc Diy

US $999.00

Demopolis, Alabama, United States
Jan 29th

Open on mobile:
QR code

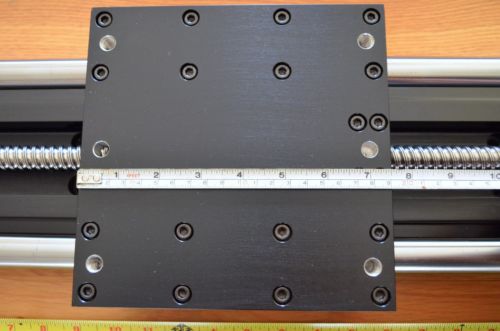

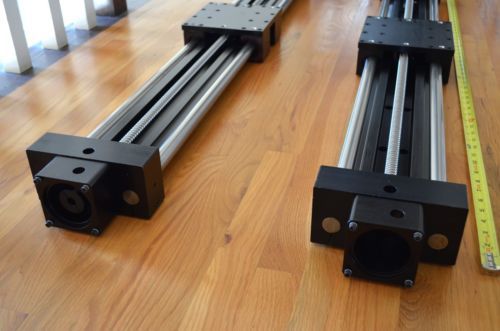

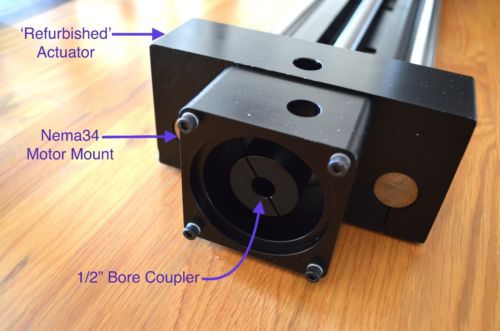

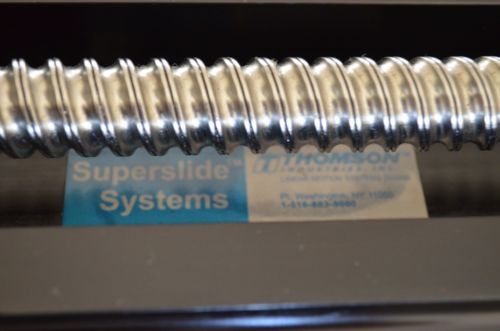

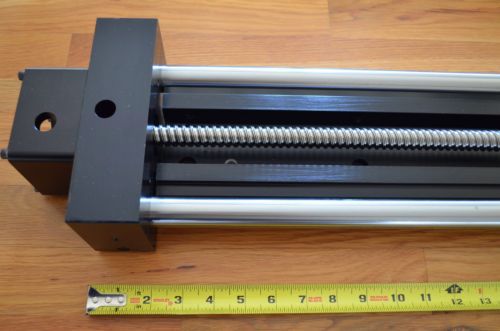

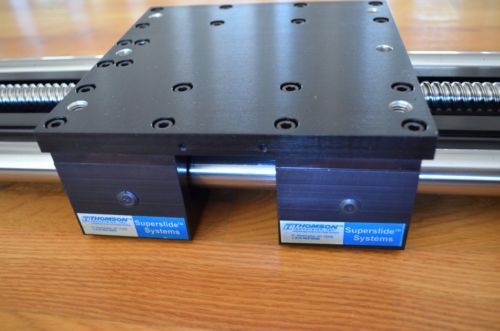

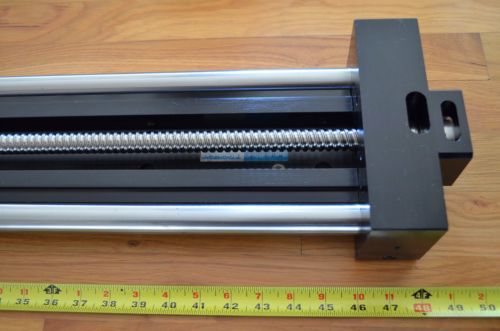

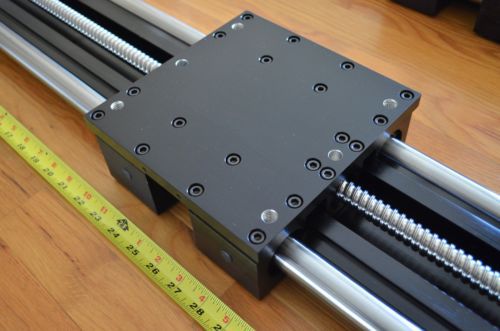

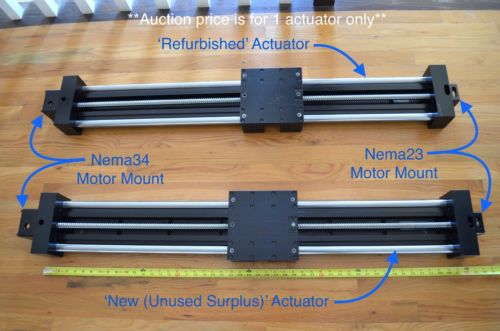

New 48" Thomson 2DB16 'SuperSlide' Linear Ballscrew Actuator (Heavy-Duty) Retail Price = $6,842.00 each *Auction price is for 1 actuator, I have 2 available* *The first unit is New 'Unused Surplus' and the other has been 'Refurbished' to 'New working condition', the 'New' unit will be shipped to the first buyer* These are new / refurbished Thomson 2DB16 'SuperSlide' linear actuators. The 2DB16 is the top of the line actuator from Thomson, that can handle very heavy loads and high speed movement. It has heavy-duty 1" diameter linear rails (fully supported), 3/4" dia. precision ballscrew with 0.50" pitch (2 turn per inch). These actuators are designed to be used with nema34 motors, or nema23 motors. Both of these actuators have motor mounts on either end, with a nema23 motor mount on one end and a nema34 motor mount on the other, so you can use either a nema23 or nema34 motor. The 'New' actuator has a zero-backlash coupler on the nema23 side with a 1/4" dia. bore (for use with a nema23 motor with a 1/4" dia. shaft.). And the 'Refurbished' actuator has a zero-backlash coupler on the nema34 side with a 1/2" bore (see photos). Carriage measures approx. 7-1/2" x 7-1/2". Max travel is approx. 36-1/2". This actuator is very accurate, with a repeatability of +/- 0.0002" It is also very heavy-duty, with a dynamic load capacity of 3,555 lbs Length of actuator (not including motor mounts) is 48" Overall dimensions are 7-1/2"w x 51"l x 3-1/2"h. Weight is 62lbs 4ozs. This would make a very nice X or Y Axis for a CNC router or plasma cutter. From Thomson's website: 2DB (SuperSlide®) Linear Units Thomson's 2DB (SuperSlide) positioning table is a continuously supported system designed for rigid applications moving medium to heavy duty loads. The table comes from the factory pre-aligned and preassembled for immediate installation with mounting screws through the base. An integrated ball or lead screw assembly with standard NEMA motor mounting is supported in a dual LinearRace® Rail package. Let Thomson Help You Make Your Selection! Linear MOTIONEERING® LMS Sizing & Selection Tool > 2DB Specifications: Specifications / Shaft Size 2DB08 2DB12O 2DB12J 2DB16O 2DB16J Profile size (WxH): in (mm) 4.50 x 1.625 (114.3 x 41.28) 6.00 x 2.125 (152.4 x 53.98) 6.00 x 2.562 (152.4 x 65.08) 7.5 x 2.625 (190.5 x 66.68) 7.5 x 3.062 (190.5 x 77.78) Screw Type Leadscrew Ball screw Carriage integrated integrated integrated modular Maximum Stroke Length: in (mm) 41 (1041) 63 (1600) 63 (1600) 84.5 (2146) 84.5 (2146) Maximum Linear Speed: in/s (mm/s) 33.3 (850) 10.0 (254) 25.0 (635) 8.3 (211) 41.67 (1058) Maximum Acceleration: in/s2 (m/s2) 385 (9.8) 385 (9.8) 385 (9.8) 385 (9.8) 385 (9.8) Maximum Dynamic Load (Fx): lbf (N) 20 (89) 190 (845) 375 (1668) 350 (1557) 350 (1557) Maximum Dynamic Load (Fy): lbf (N) 168 (747.3) 1058 (4706) 1058 (4706) 1777 (7904) 1777 (7904) Maximum Dynamic Load (Fz): lbf (N) 336 (1495) 2115 (9408) 2115 (9408) 3555 (15813) 3555 (15813) Maximum Dynamic Torque (Mx): lb-in (Nm) 500 (56.5) 4150 (469) 4150 (469) 8850 (999.9) 8877 (1003) Maximum Dynamic Torque (My): lb-in (Nm) 500 (56.5) 4150 (469) 4150 (469) 8450 (954.7) 8098 (915) Maximum Dynamic Torque (Mz): lb-in (Nm) 250 (28.3) 2071 (234) 2071 (234) 4195 (474) 4053 (458) Max Input Speed: RPM 2000 3000 3000 2500 2500 Max Drive Shaft Force: lbf (N) 50 (222) 120 (533) 120 (533) 120 (533) 120 (533) Max Drive Shaft Torque: lb-in (Nm) 3.54 (.40) 6.73 (.76) 33.19 (3.75) 12.93 (1.46) 30.98 (3.5) Accuracy: in/12 in (mm/300mm) .007 (.18) .002 (<.050) .002 (<.050) .002 (<.050) .002 (<.050) Operating Temperature: °C (°F) -4 to 176 (-20 to +80) Screw Diameter: in (mm) 0.375 (9.525) 0.5 (12.7) inch dia: 0.5 in metric dia: 12 mm inch: 0.75 metric: 0.20 0.631 (16) 0.750 (19) Screw Lead: in (mm) 0.1/0.25/0.5/0.75/1 (2.54/6.35/12.7/19/25.4) inch leads: 0.2 in metric leads: 5.0 mm 0.5 (12.7) inch leads: 0.2 in metric leads: 5.0 mm 0.5 (12.7) 1.0 (25.4) Weight: lb (kg) of unit with zero stroke of every 100 mm of stroke of each carriage 5.93 (2.69) 1.16 (0.53) 1.89 (0.86) 13.17 (5.97) 2.30 (1.04) 4.29 (1.95 13.58 (6.16) 2.30 (1.04) 4.85 (2.2) 26.74 (12.13) 3.86 (1.75) 8.61 (3.91) 25.73 (11.67) 3.86 (1.75) 7.70 (3.49) See website below for additional info: http://www.thomsonlinear.com/website/com/eng/products/positioning_slides_linear_units/bsdbg_2db.php PDF Manual (view pages 70 & 71) http://www.thomsonlinear.com/downloads/lms/Linear_Motion_Systems_cten.pdf Shipping rate applies to lower 48 States only. International orders will be shipped via Ebay's 'Global Shipping Program' , please click on the 'Shipping and Payments' tab above and select your country from the drop-down menu to get a shipping quote from Ebay. If your country is not listed then please contact me for a shipping quote before placing a bid.

Condition	New other (see details) : A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“Auction price is for 1 actuator, I have 2 available One actuator is 'New (Unused Surplus)' and the other actuator is 'Refurbished' to new working condition.”
