Nubuilding Flex-panel Steel Building Kit 27' X 60' X 13'

US $16,848.04

Sunnyside, Washington, United States
Jan 30th

Open on mobile:
QR code

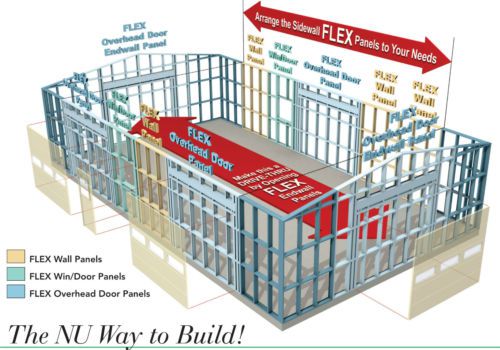

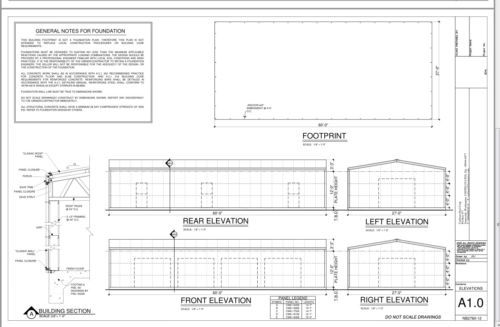

CSC Building Systems NUPRODUCT line presents NUBUIDLINGS NB2760 27’ x 60’ x 12’ (1620 sq.ft.) 6 Overhead Door Flex Panels 3 Window/Door Flex Panels Includes Galvanized Roof panels, Color Wall panels, and Color trim package. (buyer selects colors from CSC standards) Shipping Wt. Approx. 13000 lbs The NU Way to Build! CSC Building Systems - Flex Panel Series FLEX Panels are unique to the CSC Building Systems NUBUILDINGS Product Line. These panels allow the customer to select the location of the overhead doors in the building, and since the building is provided with a full metal sheeting package, the door openings can either be utilized or not. In addition, each FLEX Overhead Door Panel location includes all the structural components you need to add an overhead door as your needs change. The FLEX Win/Door Panels provide you with walk door and/or window locations as well. These panels can be utilized initially or sheeted over and accessed in the future. A typical FLEX Panel layout and details are included in the construction document package that accompany each model. NUBUILDINGS is designed to be the most complete, ready to use metal building system available today. Unlike conventional metal buildings, it can easily accommodate standard energy efficient insulation, residential doors and windows available at any home center. Since the structure is stud and truss based, as soon as the assembly is completed it is ready for whatever wall and ceiling finish material you select, with no additional expensive framing required. NUBUILDINGS models are available in 13 popular sizes and can be ordered with either a 11’ or 13’ eave height to accommodate almost any anticipated use. NUBUILDINGS, a NUSOLUTION to your metal building needs. What is included in this CSC Building Systems, NuFrame and NuTruss frame kit? 1. Complete Architectural and Structural Drawings 2. Licensed Engineer’s structural certification of the drawings and design 3. Assembly drawings for the wall panels and trusses 4. NuFrame Galvanized Steel Stud wall framing studs and track including: a. Top and bottom tracks are part-marked, cut to length, and pre-punched for all stud and jam connections. b. Studs part-marked, pre-cut and pre punched for connection to track, blocking, bracing, and framed openings c. Blocking is part-marked, pre-cut and pre-punched for easy assembly between studs. d. Door jams and headers are part-marked, pre-cut and pre-punched e. Window jams, headers, and sills are part-marked, pre-cut and pre-punched f. Diagonal bracing (if required) is part-marked, pre-cut and pre-punched for required wall panels g. The walls are divided into 8’ to 12’ sections, part-marked and packaged individually for assembly and easy handling. h. An assembly diagram for each wall section identifying the location of each part-marked component in the section assembly. i. All rivets, self-drilling screws, and angle clips required for assembly of the building frame. 5. NuFrame Galvanized Steel Stud Roof framing (if used) a. Top and bottom tracks are part-marked, cut to length and pre-punched for all rafter connections. b. Rafters are part-marked, pre-cut and pre-punched for connection to track, blocking, bracing. c. Blocking is part-marked, pre-cut and pre-punched for easy assembly between rafters. d. The roof framing is divided into 8’ to 12’ sections, part-marked, and packaged individually for assembly and easy handling. e. An assembly diagram for each roof section identifying the location of each part-marked component in the section assembly. f. All rivets, self-drilling screws, and angle clips required for assembly of the building frame. 6. NuTruss Galvanized Roof Trusses (if used) a. Top and bottom chords are part-marked, cut to length, coped, notched, and punched for precision, bolted assembly. b. The web members are part-marked, cut to length, coped, notched, and punched for precession assembly. c. Each truss is individually packaged and part-marked. d. An assembly diagram for each truss identifying the location of each par-marked component in the section assembly. e. All bolts, nuts, attachment clip, self-drilling screws, and bracing required for assembly of the building frame. 7. NuBuildings included exterior covering: a. Roofing white 29 guage 3’ wide panel b. Walls color (choice standard colors) 29 gauge 3’ wide panel c. Complete white trim package d. All self-drilling fasteners, sealants, closures, and bracing to complete the building. What do you provide? 1. Foundation or floor engineering and installation. 2. Anchor bolts 3. Doors and windows. 4. An Excel Spreadsheet listing the types and quantities of finishing materials, that are supplied by the owner, is available free along with a PDF set of plans by calling 509 837 4650. CSC BUILDING SYSTEMS presents the NUPRODUCTS line which includes fully designed and pre-engineered standard model steel framing packages suited to fill any homeowner or entrepreneur’s needs. Your steel framed package includes wall panels and trusses, including window and door openings that are precision-cut and precision-punched for easy, self-squaring, field assembly. When building with steel, you receive a safer and stronger product that will not contribute fuel to the spread of fire and is termite resistant. All NUPRODUCTS lines are produced with our NUFRAME® and NUTRUSS 3.0® Automated Framing Systems which provide a total light gauge cold formed steel solution for panels and trusses. Explore our line of innovative lifestyle designs and find the perfect home, shed, garage, horse barn, and more. For more information on our NUPRODUCTS lines call 509-837-4650. NUBUILDING, the constructive green choice. FAQ = Frequently Ask Questions Q: Does the NUPRODUCT come complete as shown in the pictures? A: CSC Building Systems provides a complete light gauge steel framing system that includes the wall panels, roof trusses, floor trusses (where applicable), clips, framing angles, and fasteners necessary to erect the light gauge steel frame for the model you select. The picture shown in the brochure is an architects rendering of what the building could look like using certain types of finish materials that are left up to the customers choosing. Q: Can I erect the frame myself? A: Certainly you may erect the frame yourself. Many customers choose to do just that. However, many customers also choose to hire an experienced general contractor or framer to provide this service as well. The choice is up to you. Q: Does it come with assembly instructions? A: Yes. Your purchase of any NUPRODUCT comes complete with the Architectural and Structural plans detailing wall panel locations, truss layouts, and connection details necessary to complete the erection of your light gauge steel frame. Q: Is steel termite proof? A: Yes it is. The IRC has been changed to recognize cold-formed steel framing as a primary form oftermite protection. For structures being erected in areas where the building code is governed by the IRC it is highly probable that you will be able to produce the structure without treating for termites if you are using light gauge cold-formed steel for all of the structural elements in the structure. You can get a copy of this code change by going to section R-320.1 of the IRC075 Supplement add form August of 2007. NOTES: All measurements are approximate. Renderings are artist conceptions and may vary from actual plans. CSC Building Systems reserves the right to modify and update plans without notice. Curfman Steel Corp. dba CSC Building Systems is an authorized fabricator for NBS-LGT, Nucor Building Systems Light Gauge Technology. NuShelter, NuBuildings, NuGarage, NuShed, NuEquestrian, NuSafe, NuFrame, NuTruss,NuProducts are registered trademarks of NBS-LGT. Used by Permission

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	CSC Builidng Systems
Country of Manufacture	United States
Model	NB2760 27' x 60' x 13' Steel Building
