Ophthalmic Unit Tw-1515

US $8,500.00

United States
Jan 30th

Open on mobile:
QR code

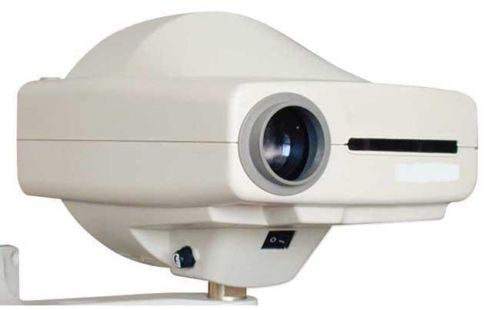

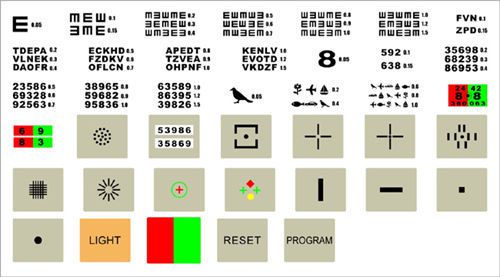

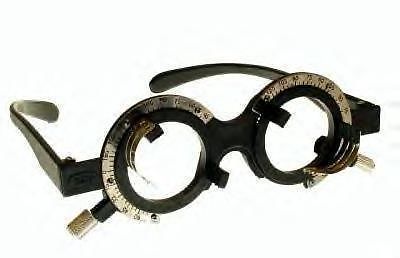

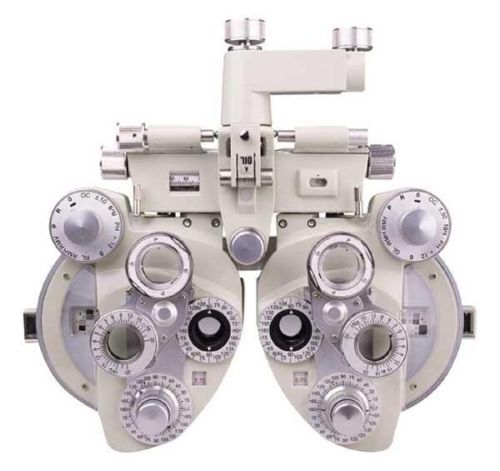

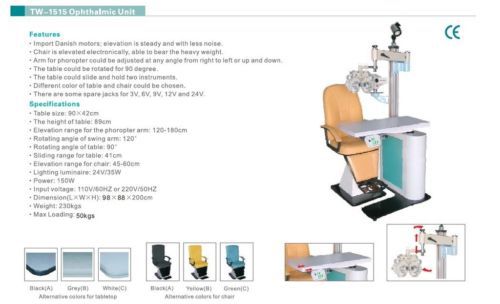

Brand New - Ophthalmic Unit -Model TW1515 Model TW-1515 Ophthalmic Unit Features: •Import Danish motors; elevation is steady and with less noise. •Chair is elevated electronically, able to bear the heavy weight. •Arm for phoropter could be adjusted at any angle from right to left or up and down. •The table could be rotated for 90 degree. •The table could slide and hold two instruments. •Different color of table and chair could be chosen. •There are some spare jacks for 3V, 6V, 9V, 12V and 24V. Specifications: •Table size………………90x42cm •The height of table……………89cm •Elevation range for the phoropter arm: 120-180cm •Rotating angle of swing arm……120? •Rotating angle of table…………90? •Sliding range for table…………41cm •Elevation range for chair……45-60cm •Lighting luminaire………24V/35W •Power………………150W •Input voltage: 110V/60HZ or 220V/50HZ •Dimension(LxWxH): 170x130x200cm •Weight………………230kgs •Max Loading………………30kgs This unit includes:Chair and stand, Phoroptor , Auto Chart projector, Trial Lens Set. Phoropter/Specifications: 1. Sphere Power: Range:+16.75 to -19.00 diopters; Step: 0.25 diopters 2. Cylinder Power: Range: 0.00 to -6.00 diopters (0.00 to -8.00 diopters with additional lens of -2.00 diopters); Step: 0.25 diopters 3. Cylinder axis: 0 to 180, 5° step; 4. Cross Cylinder: ±25 diopters; 5. Rotary Prisms: 0? to 20?, 1? step; 6. Auxiliary lens dial: (O)-Open aperture (two positions)(R)-Retinoscopic lens,+1.50D (P)-Polarizing lens 45°- left eye 135°- right eye (WMV)or(RMV)-Maddox rod. Vertical white-left eye red-right eye (WMH)or(RMH)-Maddox rod. horizontal white-left eye red-right eye (RL)-Red lens(1.12-10.12D sphere(PH)-Pin hole (10?L) or (6?U) -10?base-in-left eye 6?base-up-right eye (dissociating prisms) (±.50)- ±0.50 fixed cross cylinder(0C)-Occluder 7. P.D. adjustment: 48-75mm, 1mm as a step; 8. Standard Accessory lenses: Two 12D and -2.00 cylinder lenses,two plano lenses for sealing front opening; 9. Standard Accessories: 1 near point card with holder and reading rod,dust cover, face shield, accessory case for lenses; 10. Dimensions: 318 x 293 x 96 (mm); 11. Net weight: Approx 5kg. TW-800A Chart Projector Specifications Projection distance:1.8—6m Projection magnification:30x(in 5m refraction) Projection Size:250x250mm,300mm(in 5m refraction) Numbers of charts:30 Chart change-over:1 frame/0.2sec Numbers of masks: open 1, horizontal line 5, vertical line 6, single isolation 16, r and g1 Tilt range: 10? horizontally as well as vertically Projection lamp:12v 30w(halogen lamp) Automatic shut-off mechanism: 5 minutes Electricity:AC 110 or 220v 50/60hz DC 12v Power consumption: 60VA Dimension:196(w)x292(L)x234(h)mm Weight:7.2kg The TRIAL LENS SET with 266 pieces is suitable for examining refractive errors. This aluminum case with combination lock consists of trial glass lenses mounted in metal rims (the entire inner lens tray is removable), fiber cloth, handbook and a FREE standard trial frame. Power ranges: Lens powers are clearly imprinted on each lens rim as well as on the inner tray. Speherical Convex(+) & Concave (-) Lens: ±0.25, ±0.50, ±0.75, ±1.00, ±1.25, ±1.50, ±1.75, ±2.00, ±2.25, ±2.50, ±2.75, ±3.00, ±3.25, ±3.50, ±3.75, ±4.00, ±4.25, ±4.50, ±4.75, ±5.00, ±5.25, ±5.50, ±5.75, ±6.00, ±6.50, ±7.00, ±7.50, ±8.00, ±8.50, ±9.00, ±9.50, ±10.00, ±11.00, ±12.00, ±13.00, ±14.00, ±15.00, ±16.00, ±18.00, ±20.00 Cylindrical Convex (+) & Concave (-) lens: ±0.25, ±0.50, ±0.75, ±1.00, ±1.25, ±1.50, ±1.75, ±2.00, ±2.25, ±2.50, ±2.75, ±3.00, ±3.25, ±3.50, ±3.75, ±4.00, ±4.50, ±5.00, ±5.50, ±6.00 Prism Lens: 0.5x2, 1.0x1, 2.0x1, 3.0x1, 4.0x1, 5.0x1, 6.0x1, 8.0x1, 10.0x1 Plus Auxiliary lenses (includes 2 Cross Cylinder). Availability: 6 to 8 weeks
