Sine Plate

US $200.00

  • North Chili, New York, United States
  • Feb 21st
Open on mobile:
QR code

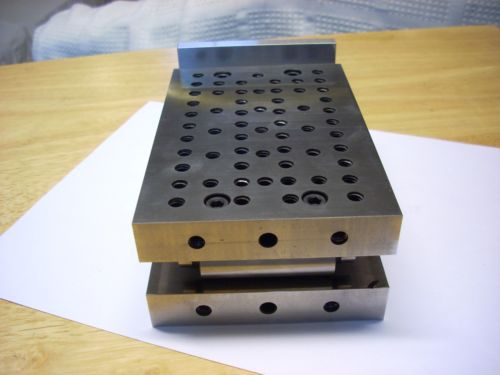

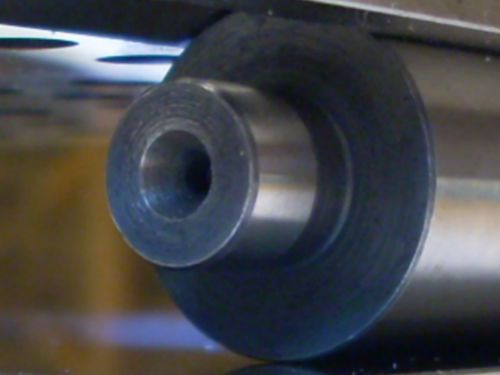

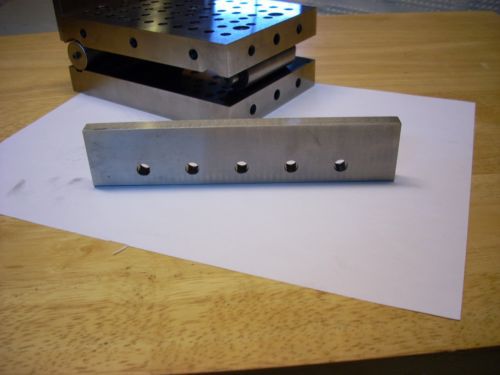

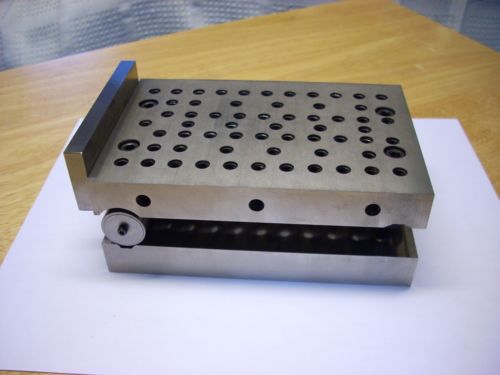

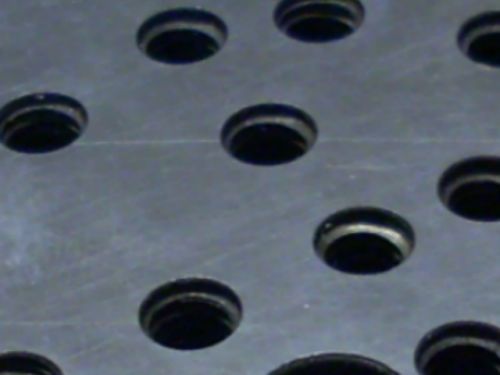

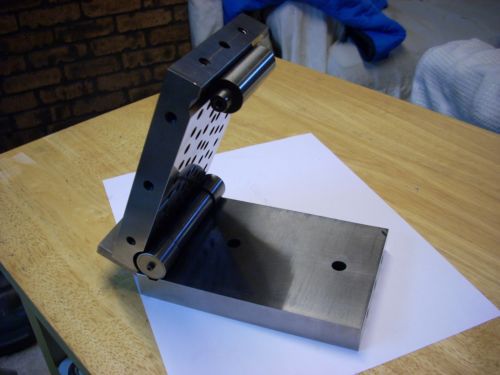

Toolmaker made sine plate,4 inches wide,6 inches long,2 1/4 inches tall (when closed). 5 inches between rolls. Plates are 3/4 inch thick. Plates and rolls are made of  O-1 tool steel,hardened to 60-62 R/C . Has 60 1/4-20 tapped holes in top plate with top thread relieved to prevent pull-out. A Hermann Schmidt 3" wide grinding vise will mount with all four screws. Bottom plate has mounting holes for 1/4 inch cap screws. Front roll has a .200" step at each end. End rail and side rail included. Lock set not included(Hermann Schmidt style will fit). Please feel free to ask any questions before bidding. PayPal only. Item will ship as soon as payment is received.
