Tektronix Sg 503 Leveled Sine Wave Generator Plug-in, Works Great! Sn:b068867

US $350.00

  • Seattle, Washington, United States
  • Jan 29th
Open on mobile:
QR code

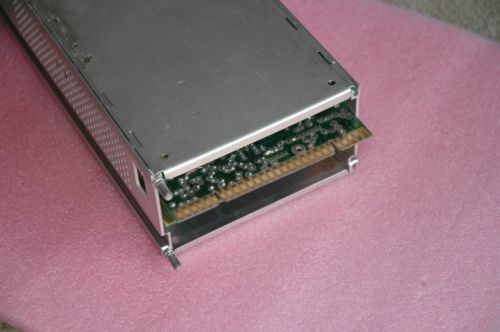

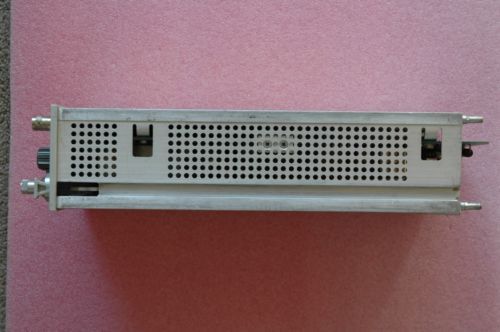

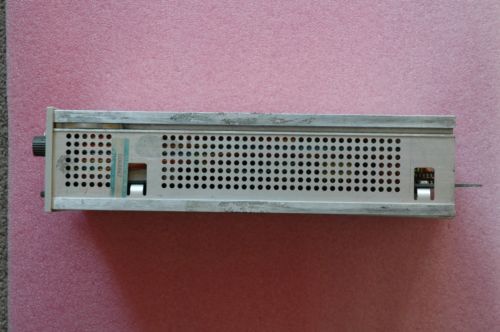

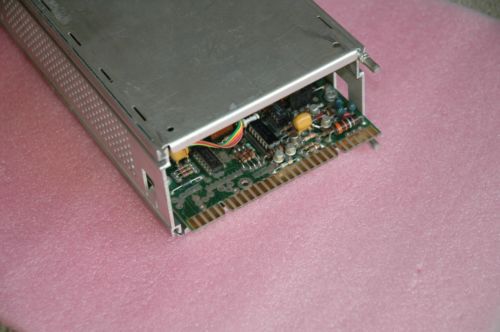

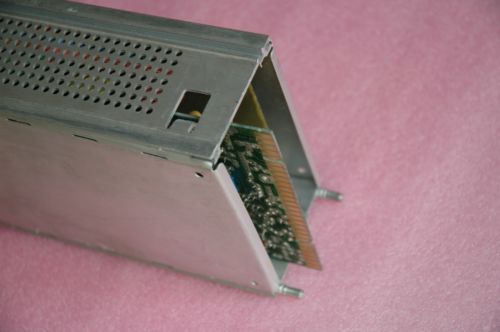

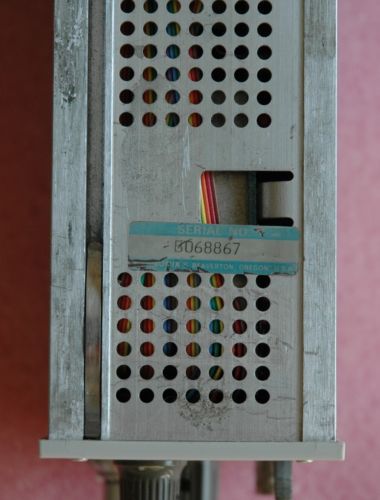

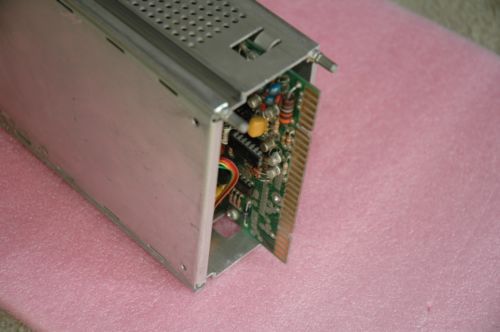

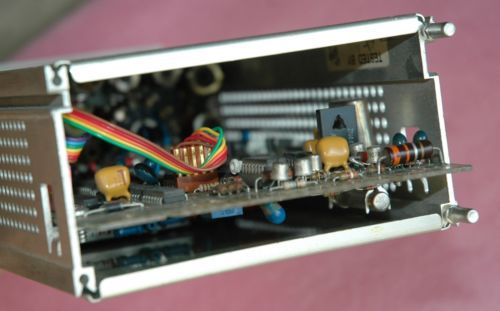

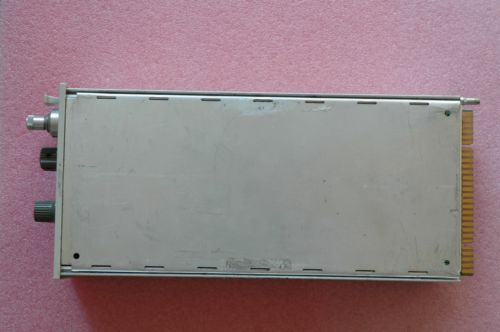

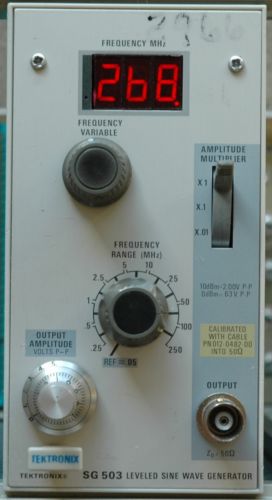

TEKTRONIX SG 503 LEVELED SINE WAVE GENERATOR SN:B068867 Photos are of the actual instrument you will receive and show it's overall good operating/physical condition. It is fully tested and verified in good working condition. This plug in works in a Tek. TM 501, TM503, TM 504, TM 506, and TM 5006 series Module power supply. The SG 503 signal generator is a general-purpose leveled sine-wave oscillator. It provides a leveled output amplitude which is variable from 250 kHz to 250 MHz. The selected frequency is indicated by a built-in autoranging frequency counter with a three-digit LED read-out on the front panel. accurately calibrated output voltage into 50 ohms is variable from 5 mV to 5,5 V peak-topeak. Amplitude accuracy 3 %. From 250 kHz to 100 MHz output amplitude will not vary more than 1%. Guarantee Terms: This item is guaranteed to power on & has no known functional Issues. If the item does not power on (DOA) or  is functionally defective, you may qualify for a refund. In such a case, you must contact me within 14days after  you received it. Thanks for looking!
Condition Used :
An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes “In very good condition. Fully function, verified, Calibrated, and adjusted to the best possible condition.”
