Usa Ship 4 Aixs Usbcnc Controller Kit Nema23 425oz-in&stepper Motor Drievr 4.0a

US $302.80

Los Angeles, United States
Jun 9th

Open on mobile:
QR code

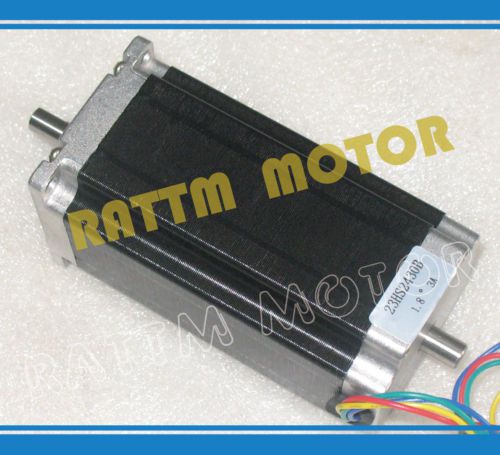

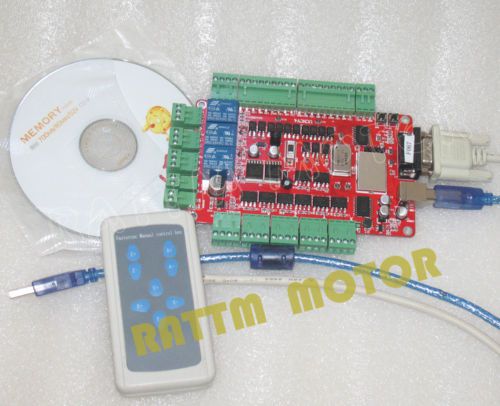

USA ship 4 Aixs USBCNC Controller kit Nema23 425oz-in&stepper motor drievr 4.0A Package include: 4 x 23HS2430B stepper motor (Dual Shaft) 4 x FMD2740A stepper motor driver 1 x 400W 36V/9.7A switching power supply 1 x 4 axis USBCNC breakout board 1 x Hand controller 1 x USB Cable CD include with English user manual and software and register code. 1. 4Axis USBCNC breakout board 1) Products brief introduction USBCNCV4.0 is a high performance motion controller which based on PC software USBCNC control, the system can complete the conversion from G code to connect stepper motor’s driver motion control signal without requiring any additional hardware and software. This control card is compatible with most stepper driver and servo driver,it is a perfect controller that instead of parallel Mach3 interface board. 2) Computer system requirement Minimum configuration: 1) CPU:1GHz 2) Memory: 512MB 3) 500MB free disk space 4) DIRECTX9 graphics device with WDDM 1.0 or higher driver 5) USB 2.0 interface 6) Net FRAMEWORK 3.5SP1 The recommended configuration: 1) CPU:2GHz dikaryon 2) Memory: 2GB; 3) 1G free disk space 4) DIRECTX9 graphics device with WDDM 1.0 or higher driver 5) USB 2.0 interface 6) Net FRAMEWORK 3.5SP1 3.Production feature 1. After the revision,V4 version using the red PCB board, PCB size is 135.3*82.5mm.; 2. The front of the narrow edge placed with USB communication interface and DB9 hand control interface for the convenience of customers drawn from the case panel directly; 3. The back-end of narrow edge is power input and output interface and 3 relay output interface; relay is strong interference source, relay away from the design of main control chip, it is conducive to the stability of the board; 4. One of the two wide sides is stepper motor and principal axiscontrol signal output; 5. The another side of two wide sides is the emergency stop, manual speed input, limiting input interface; one side for the input, another side output connection mode is simple and convenient; 6. 5V and 12V power module compact independence, security, stability; 7. External ensure the stability of the system work effectively with crystal active and main control chip shield; 8.outline dimension is 135.3*82.5mm, product positioning hole installment dimension is 127*75mm 9. The software is USBCNC,not mach3,pls note! This item is easy to operate for DIY hobby user,but it is control by USB port,so need more careful for the software install,and pls must be strict read the user manual and follow us. 2. FMD2740A stepper motor driver 1)Brief introduction FMD2740A FMD2740A driven by Japanese sanyo's chip,After multiple optimize R & D and production of high-subdivision 2-phase stepper motor drives, suitable for driving small and medium-sized phase current is less than 4A 2-phase or 4-phase hybrid stepping motor. Due to the adoption of the new bipolar constant current chopper drive technology, using the same motor can output more speed and power than other drivers. Segments stepper motor running accuracy improved, reduces vibrations and noise reduction. 2)Features 1. High-performance, low price 2. Bipolar constant current chopping mode 3. Power supply voltage 12 to 40VDC 4. High-speed optocoupler signal isolation input 5. 20kHz chopping frequency 6. Subdivision precision 2\8\16\32\64\128\10\20 optional 7. Electrical input signal is TTL compatible 8. Stationary current is automatically reduced by half 9. Shape design is convenient for installation 10.Maximum drive current is 4A 11.Drive any 4A phase current of 2-phase or 4-phase hybrid stepping motor 3)Applications Suitable for a variety of small and medium-sized automation equipment and instruments,for example: Small engraving machine, SMT machine, etc. 4)Wiring defined Weak signal interface Signal Function SP+ Pulse signal + end SP- Pulse signal - end DIR+ Direction signal +end DIR- Direction signal-end EN+ Enable signal +end EN- Enable signal -end Strengths connection port Signal Function VIN+ 12to50 v dc power supply input +end,it is recommended to use 36V3A GND DC power supply connection ground A+ Stepper motor A + Phase terminal A- Stepper motor A - Phase terminal B+ Stepper motor B+ Phase terminal B- Stepper motor B - Phase terminal NOTE: This drive does not contain anti-anti-interpolation circuit so non-input positive and negative power supply upside down! Otherwise it will damage the drive! 5)The electrical characteristics 6)The use of the environment and parameters Cooling method Natural cooling or forced air cooling Use of the environment Occasions Avoid dust, oil mist and corrosive gases Temperature 0°C-+50°C Humidity 40-90%RH Vibration 6m/s2 MAX Storage temperature -20°C-+65°C Weight 250g 7)Mechanical installation size 8) Power supply The supply voltage can work normally in between DC12V-50V, FMD2740A driver can use ordinary switch DC power supply, can also be used for transformer and the bridge rectifier and filter capacitor, capacitance desirable 2000U to 5000U. Note rectified voltage ripple crest does not exceed 50V.Recommended the user to use the 24V-32V DC supply , avoid the grid fluctuations over drive voltage operating range. Note: 1, Wiring should pay attention to the power of positive and negative Do not be reversed; 2, In order to reduce costs, multiple drives can share a power supply. But it should improve the rated power and rated output current of the power and attention to cooling. 9)Attenuation of the DIP switch settings Decay mode SW1 SW2 Slow decay OFF OFF Mixed decay ON OFF Fast decay OFF ON 10)Subdivision DIP switch settings 11)Current DIP switch settings 12)Drive motor controller wiring diagram 13)Electrical wiring The FMD2740A driver can drive all current 4A 4-wire, 6-wire or 8-wire 2-phase / 4-phase motors, are detailed below 4-wire, 6-wire, 8 wire stepper motor connection: 14)Matching of the drive and motor FMD2740A driver can drive the domestic and foreign manufacturers of 2-phase or 4-phase motor, in order to obtain the most satisfactory driving, you need to choose a reasonable supply voltage and current setting. Supply voltage determines the level of the high-speed performance of the motor, and the current set value determines the output torque of the motor. Supply voltage selected Generally speaking, the higher the supply voltage, the greater the torque motor at high speed, the more it can avoid the high speed out. But another aspect, the voltage is too high will lead to over-voltage protection, and can even damage the drive, but also in the high-pressure work, low speed vibrations. The output current is set For the same motor, the greater the current setting, the higher speed, the current motor and drive more heat. So under normal circumstances the current setting into a powered machine warm but not too hot long-term value. Note: the current settings after you run the motor for 15-30 minutes, if the motor temperature is too high, you should reduce the current settings. If the motor current setting, the motor output torque is not enough to improve heat dissipation conditions to ensure that the motor and drive are not hot. 3. Stepper Motor Technical Specifications Part No.: 23HS2430B Frame Size: NEMA23 Step Angle: 1.8 degree Current: 3.0A/phase Resistance: 1.6 Ohm/phase Inductance: 6.8 mH/phase Holding torque:280N.cm/28kg-cm 425 oz-in Rotor inertia: 800g-cm2 Number of wire leads: 4 Weight: 1.66 kg Length: 112mm General Specification: Step angle accuracy:+ - 5%(full step,not load) Resistance accuracy: + - 10% Inductance accuracy:+ - 20% Temperature rise: 80deg Max(rated current,2 phase on) Ambient temperature ----------—20deg ---- +50deg Insulation resistance:100ohm Min,500VDC Insultion Strength--------500VAC for one minute Datasheet(23HS2430,Front shaft 8mm dia and 21mm length,back shaft 8mm dia and 11mm length,425 oz-in or 28kg.cm holding torque) This product also has a single shaft for choice, the need to invite the message. Wiring: Red: A+ Green: A- Yellow: B+ Blue: B- 4.Switching power supply 400W,Input:100-120VAC or 200-240VAC,50/60Hz,Output:48v/8.3A,single output switching power supply 5.Usage or Application This products are widely used in engraving machine, printer, medical equipment, embroidery machine, stage lighting, textile automation, printing, packaging and other industries automation equipment. Shipping Please open the package and check if there are some damages before sign, if there are some damages , please do not sign and contact us immediately We ship to worldwidebut If your country’s custom is strict, please contact us before you bid to check detail and confirmed. Delievry time USA post service round 10-18 business days Canada China post round 25-40 business days Australia China post round 20-35 business days Western EU(Germany,UK,France, etc) China post 20-35 business days Asia,South America,other countries Chins post round 15-40 business days Note:above offer is default delivery way,if you need fast delivery like as DHL/UPS or post service pls inform us to confirm the shipping cost before you bid Above DHL/UPS offer is without remote fee,if your post code is remote it need extra cost. All items will be shipped within 1-3 business days upon receipt of payment Payment We accept paypal payment,all Paypal must be confirmed(shipping and billing address must match and correct and it need tell us your telephone no for delivery) Payment must be made within 48hours of the auction end time Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer responsibility. Problem&Feedback Please give us the opportunityto resolve any problem when you have,we concern your problem and we will try our best to resolve it. We are a new member in ebay now,and need understand both of sides Pls email us before you want to leave any negative feedback Refund When you have the parcel,and not satisfied the goods or it is other problem like as broken,pls tell us the detail reason and provide the photos,after confirm we will refund your money,but the delivery charge paid by buyer. Contact us Email:sale1@rattmmotor.com,MSN:tonyswj@hotmail.com Welcome worldwide customer inquire and questions,we will try to do our best to feedback customer’s email within 1-2 business days,if not pls check the mail box again Customer’s satisfaction is very important to us. eBay Cross Border Trade powered by MerchantRun GlobalLink

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	RATTMMOTOR
Name	4 axis CNC stepper motor controller kit
Model	23HS2430B/FMD2740A
Driver	FMD2740A
MPN	Does not apply
Power supply	400W,36V/9.7A
Country/Region of Manufacture	China
Shaft	Dual shaft
UPC	Does not apply
